DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
DECI More Spindle is also available with best price, if needed, welcome contact us.
1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.cooled by self: 400w
4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw
cooled by air: 8kw,9kw (same HSD)

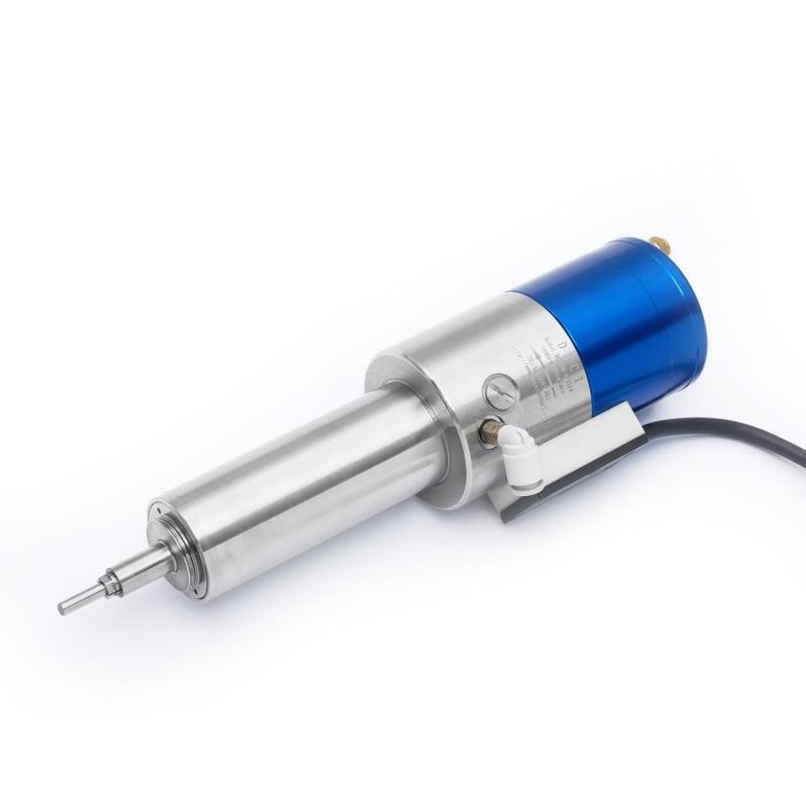

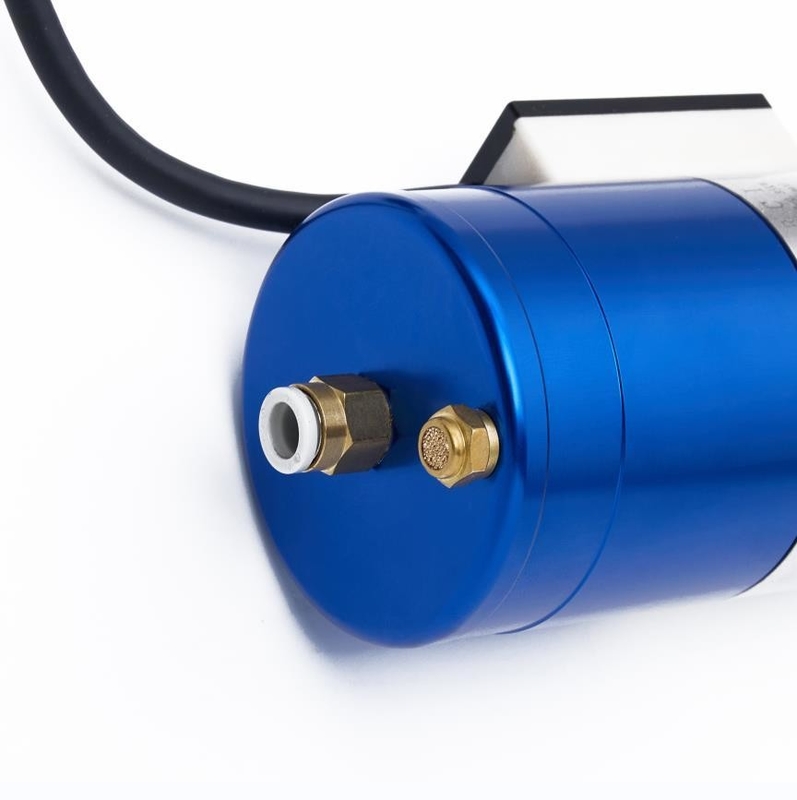

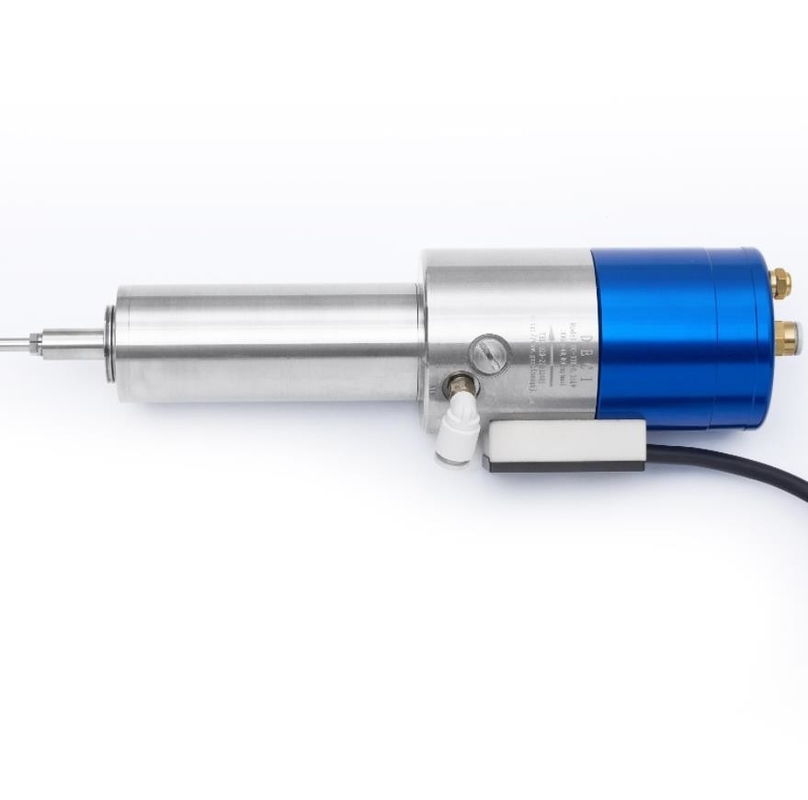

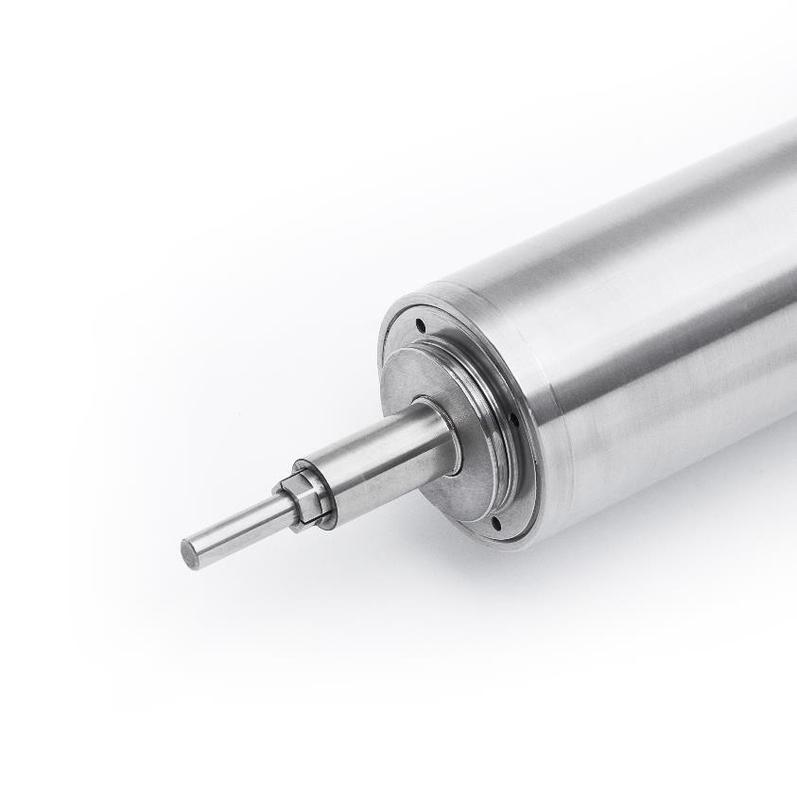

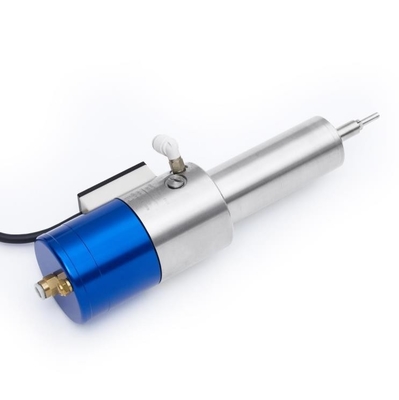

| DC-33Parameters Motor Power:0.25KW Rated voltage: 72V(DC) Max rotate speed :60000Rpm/min Max currency:5.5A Max Frequency:1000Hz Torque:0.04N.MSpecification Cone surface spring at shaft end: ≤0.001mmTooling Releasing Air curtain: 5.6-6.0 Kgf/cm² Tooling Exchange Method: ATCAir curtain pressure at front end: - Tooling Pulling Force: 1000Tooling Back Air Pressure:~ Tooling Connection:Φ4 ColletCooling:air cooling Encoder:-Coolant Pressure:2.5~3.0Kgf/cm² Approach Switch:-Bearing Lubrication Method: GreaseBalance Level : G1Tooling Instalation Method:ClipVibration Value: ≤0.8Weight:1.1kg |
Q: Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?A
A:we have all the packages. We can get the engineer to program you.
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.
Q: Which payment method and Express can you accept?
1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.
Q: How do you make our business long-term and good relationship?
A: 1. DECI keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Learn more details
Our products are sold all over the world, you can rest assured.
