DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor

DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor

Products - Woodwork Machine Spindle Motor
  • Condition
    New
  • Applicable Industries
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Printing Shops, Construction Works , Energy & Mining
  • Weight (KG)
    29.6
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    DRILLING
  • Maximum Torque
    9.55 N/M
  • Drive
    Motor
  • Operating Speed
    24000rpm
  • Warranty
    1 Year
  • Core Components
    Bearing
  • Voltage
    380V(3~)
  • Cooling Method
    Air Cooling
  • Weight
    29.6kg
  • Frequency
    800Hz
  • Collect
    ISO30
  • Motor Power
    9kw
  • Tooling Exchange Method
    ATC
  • Product Name
    DECI SPINDLE
  • Joint Of Nose
    ISO30
  • Lubrication
    Greese
  • Place of Origin
    Guangdong, China
  • Brand Name
    DECI
  • Price
    $1,459.00/sets 1-9 sets

DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor

  • DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor
  • DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor
  • DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor
  • DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor
  • DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor
  • DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor
Get Price Contact Now
DC-WP-145B
Parameters
Moter Power(KW)
12
Rated voltage (V/AC)
380 / 220
Maximum speed(Rpm)
24000
Maximum current (A)
23
Maximum frequency (Hz)
800
Torque (N·M)
9.55
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0
Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0
Tooling Pulling Force(≥N)
2900
Tool return pressure(Kgf/cm²)
_
Tooling Connection
ISO 30
Cooling method
Gas cooling / Air cooling
Encoder (Optional)
Square wave / Sine wave / Sin or Cos
Coolant Pressure (Kgf/cm²)
2.5-3.0
Proximity switch
PNP
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
T-shape groove
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
29.6

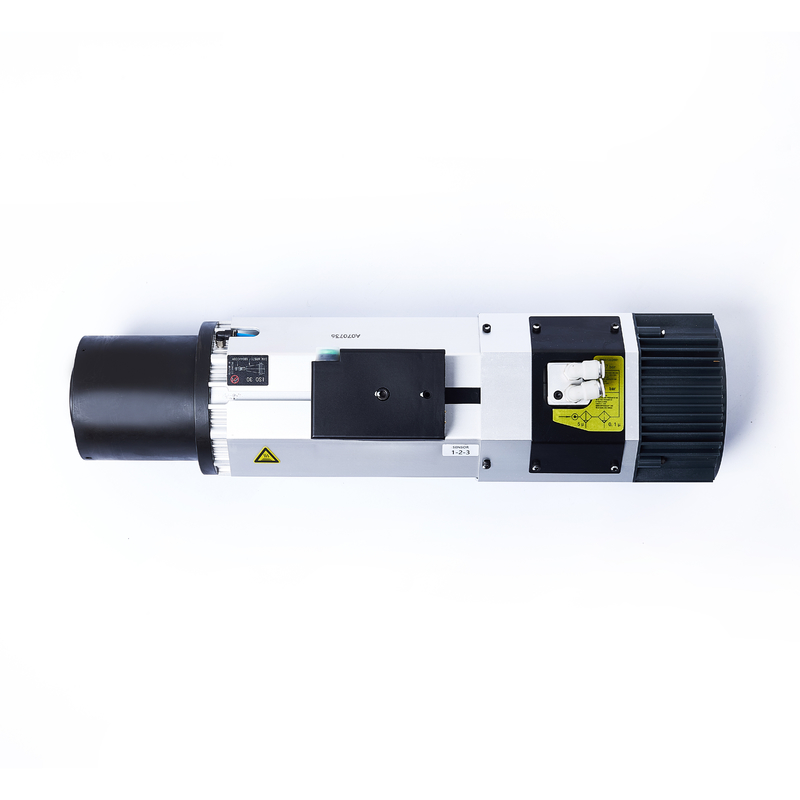

DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor 0

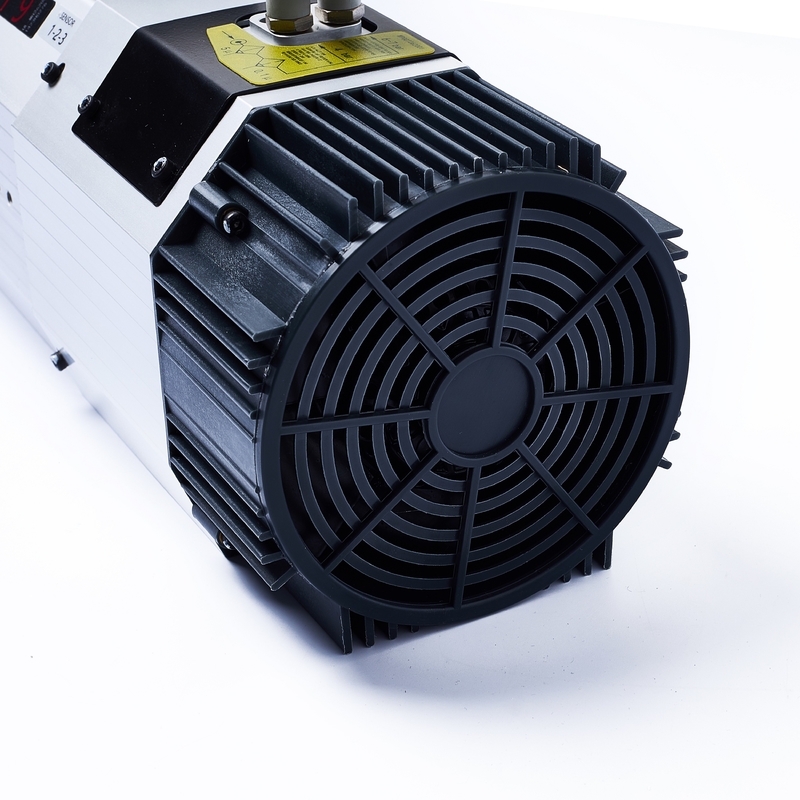

DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor 1

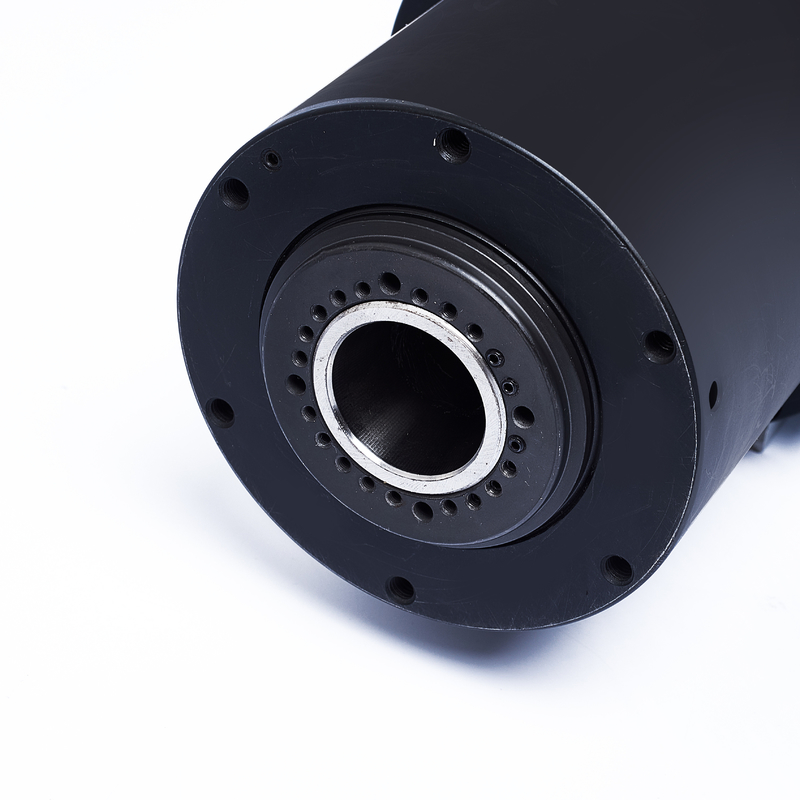

DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor 2

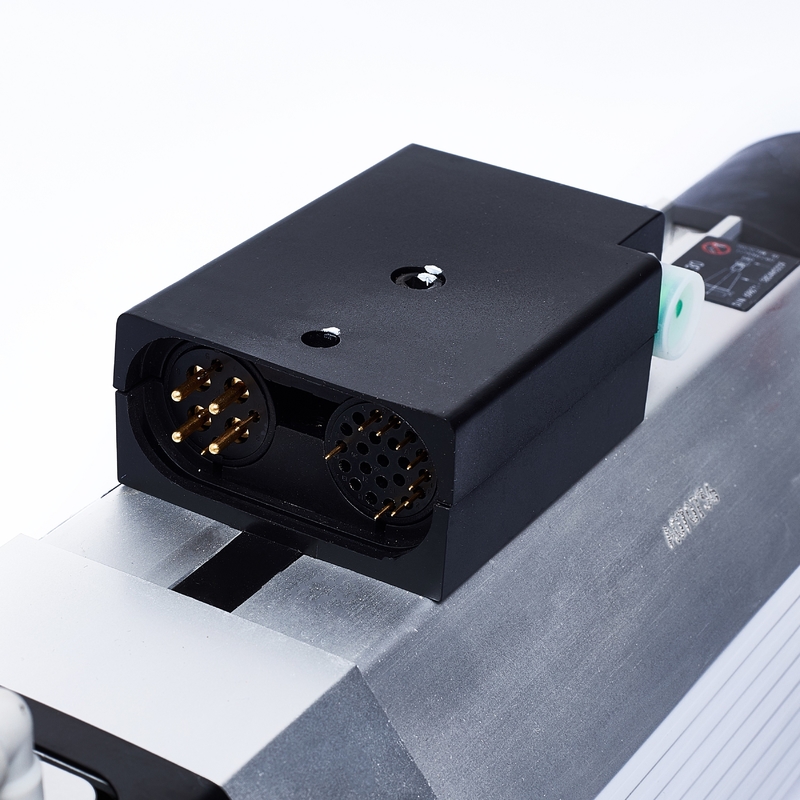

DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor 3

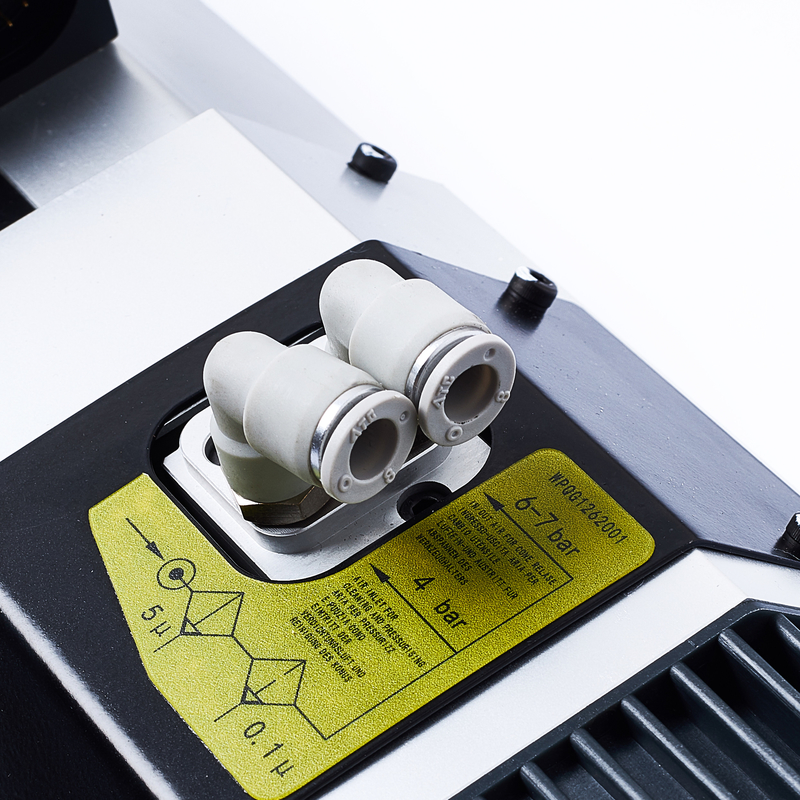

DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor 4

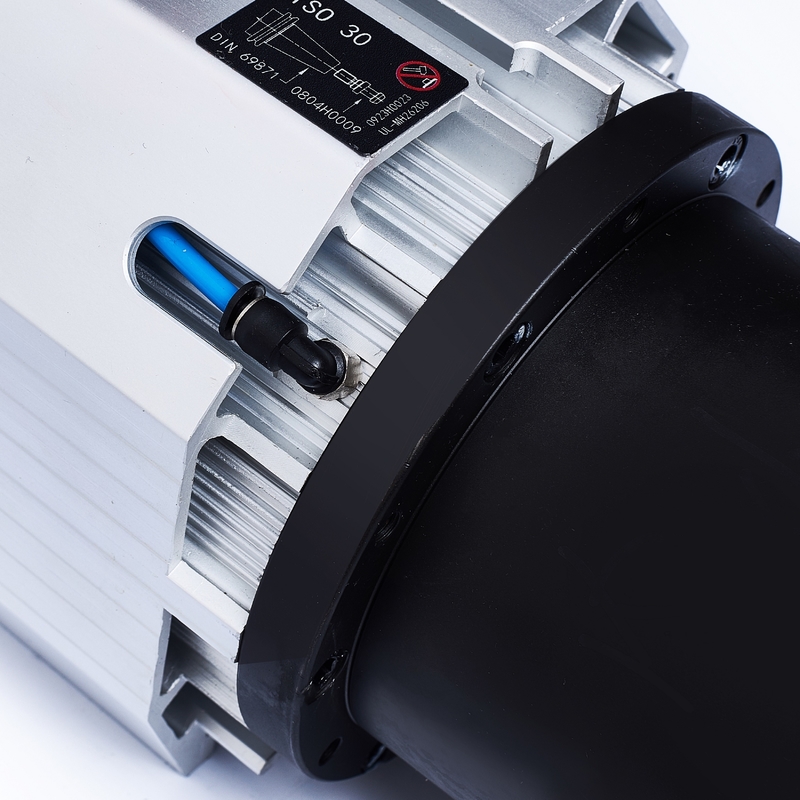

DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor 5
DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor 6
DECI ISO30 24000RPM 12KW 23A ATC spindle CNC machine engraving woodworking high precision motor air cooling spindle motor 7
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
