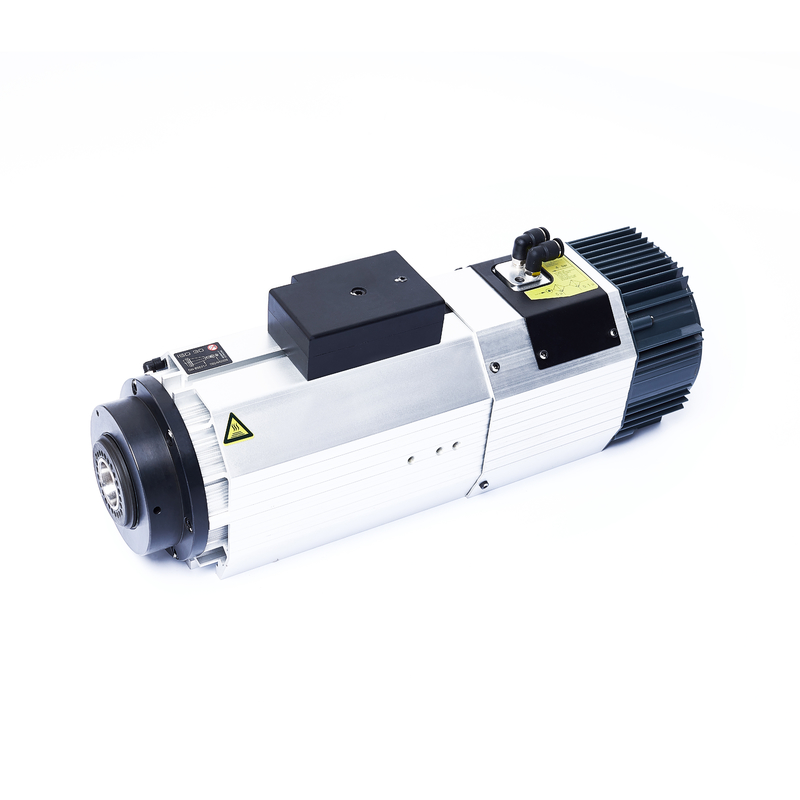

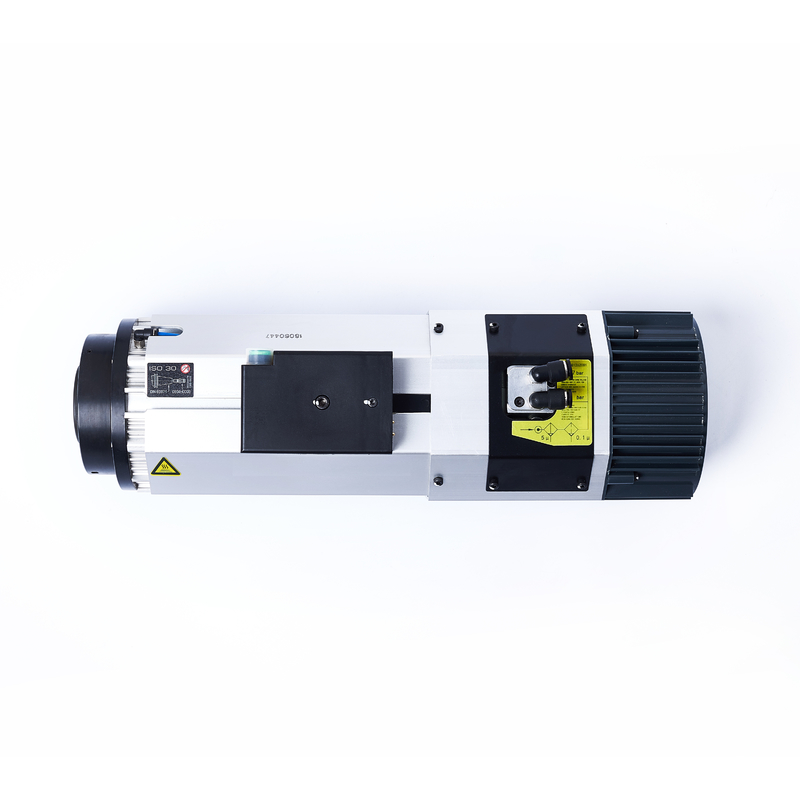

DC-WP145A | ||||||
Parameters | ||||||
Moter Power(KW) | 12.0/9.0/3.7 | Rated voltage (V/AC) | 380 / 220 | |||
Maximum speed(Rpm) | 24000 | Maximum current (A) | 23/17/7 | |||
Maximum frequency (Hz) | 800 | Torque (N·M) | 9.55/7.16/7.1 | |||
Technical parameters | ||||||
Shaft Rotation Accuracy (mm) | ≤ 0.001 | Tooling Releasing pressure (Kgf/cm²) | 5.0-6.0 | |||
Tooling Exchange Method | ATC | Front curtain pressure (Kgf/cm²) | 2.5-3.0 | |||
Tooling Pulling Force(≥N) | 2900 | Tool return pressure(Kgf/cm²) | - | |||
Tooling Connection | ISO Shank | Cooling method | Gas cooling / Air cooling | |||
Encoder (Optional) | Square wave / Sine wave | Coolant Pressure (Kgf/cm²) | 2.5-3.0 | |||
Proximity switch | PNP | Bearing lubrication mode | Grease | |||
Balance Level | G1 | Tooling Installation Method | T-shape groove | |||
Vibration value (mm/s) | ≤ 0.8 | Weigh (Kg) | 24.3 | |||
