DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning

DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning

Products - CNC Spindle motor
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    26
  • Showroom Location
    None
  • Video Outgoing-inspection
    Not Available
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    2.19N.M
  • Drive
    Motor
  • Operating Speed
    24000rpm
  • Warranty
    6 Months
  • Core Components
    Bearing, Motor
  • Product Name
    Spindle Motor 5.5KW
  • Diameter
    120mm
  • Power
    5.5kw
  • Voltage
    250(3~)
  • Frequency
    400HZ
  • Current
    16A
  • Weight
    18.5kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    HTC
  • Installation Method
    Mechanical Clip
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $1,232.00/sets 1-9 sets
  • Supply Ability
    500 Set/Sets per Month

DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning

  • DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning
  • DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning
  • DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning
  • DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning
  • DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning
  • DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning
Get Price Contact Now
Product Description

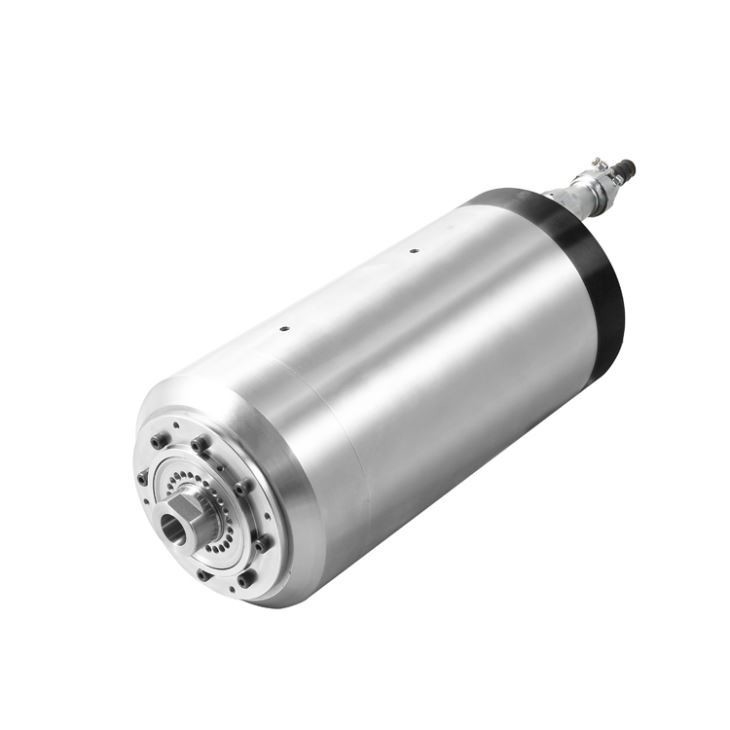

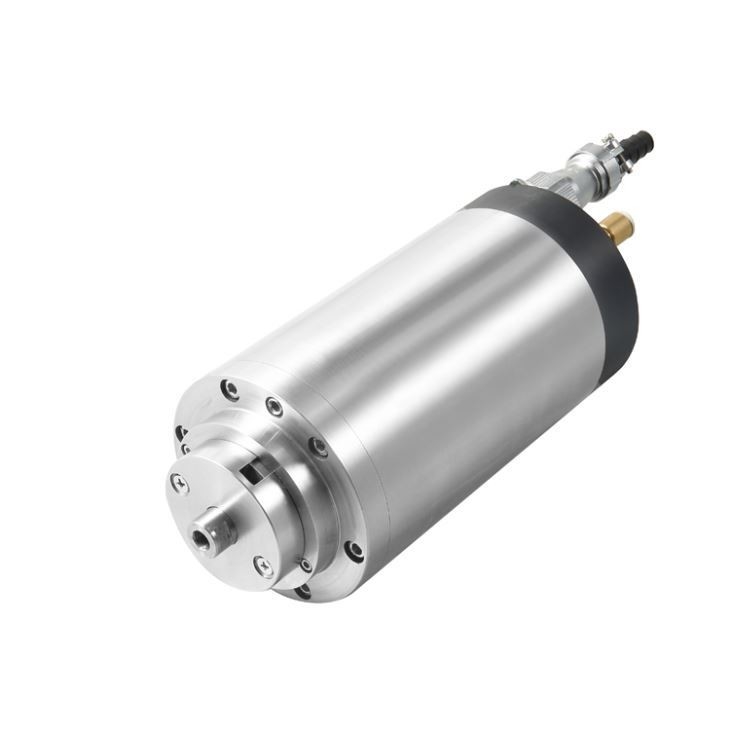

DECI spindle motor 120mm milling machine spindle 5.5KW 24000Rpm 250V water cooling cnc atc
120mm grinding spindle motor is a motor with cemeric bearing . DC-120MA is a 24000rmp spindle motor with water cooling. The serious motor spindles are designed to be easily amounted onto existing CNC routers,machining centers, etc.

DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.

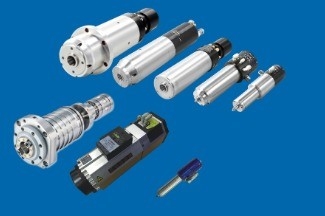

DECI More Spindle is also available with best price, if needed, welcome contact us.
1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.cooled by self: 400w
4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw
cooled by air: 8kw,9kw (same HSD)
5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw.
DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning 0
DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning 1
DECI   DC-120MA
Parameters
Motor Power:
5.5KW
Rated voltage:
250V(3~)



Max rotate speed :
24000Rpm/min
Max currency:
16A



Max Frequency:
400Hz
Torque:
2.19N.M



Specification
Shaft-end Cone Run-out:
≤0.001mm
Tooling Releasing Air Pressure:
N/M



Tooling Exchange Method:
HTC
Air curtain pressure at front end:
2.5~3.0 Kgf/cm²



Tooling Pulling Force:
─
Tooling Back Air Pressure:
N/M



Tooling Connection:
M16X1.5 grinder
Cooling:
water cooling



Encoder:
N/M
Coolant Pressure:
≥2.5 Kgf/cm²



Approach Switch:
N/M
Bearing Lubrication Method:
Grease



Balance Level :
G1
Tooling Instalation Method:
Mechanical clip



Vibration Value:
≤0.8
Weight:
18.5kg



DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning 2
DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning 3
Packing&Shipping
Packed in export standard carton or plywood case, with PP bag, thick foam.

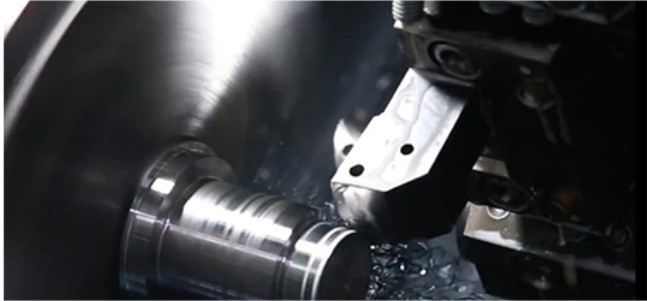

DECI Spindle / cnc in Machining.
atc spindle aluminum
atc spindle belt drivenatc spindle belt driven
DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning 4
Related Products
Applicable industry
DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning 5
Why Choose Us
DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning 6
Company Profile
DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning 7
DECI Brand
Guangzhou Ruiheng Technology Co., Ltd is located in the Eastern Development Zone of Guangzhou. (Foshan Nanhai Xingtuo Precision Machinery Co., Ltd. is our subsidiary.) The company was established in 2009. We are a national high-tech enterprise integrating R&D, production, sales and maintenance of high-speed electric spindle. With the concerted efforts of all employees, a number of self-developed patented products, and the rapid development of the industry, the product quality and accuracy requirements are getting higher and higher. For this reason, the company has introduced advanced high-precision production of Swiss, German, British, Korean and other technologies for the electric spindle. Equipment and testing and calibration equipment, with the goal of "doing fine, coming stronger and bigger", more than 60% of our products are exported to the United States, Europe, India, Brazil, Dubai and other countries to help customers continuously update with quality service. Work hand in hand with customers, develop together, use morality as a product, and create a first-class product with magnetic "DECI" to help China create!
DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning 8
DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning 9
DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning 10
Certifications
DECI 120mm Milling Machine Spindle Motor 5.5KW 24000Rpm 250V Water Cooling for CNC Turning 11
FAQ
Q1:Are you a trading company or a manufacturer?
A1: We are the manufacturer of DECI electric spindles.

Q2:Do you have the products in stock?
A2:Our products are manufactured according to your order required except normal products.

Q3:Can I get some samples first?
A3: We can supply the sample if in stock, but the customers have to pay the sample cost and the courier cost..

Q4:How does your factory do regarding quality control?
A4:Quality is priority. Quality first. We We have been paying close attention to the quality control in the production process to ensure each product passes various tests before shipping.

Q5.How about the warranty of the products?
A5: We offer 12 months of technical service and after-sales service. If any problem about the machine after receivd, feel free to contact us.

Q6:How do you make our business long-term and good relationship?
A6:1.DECI keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
