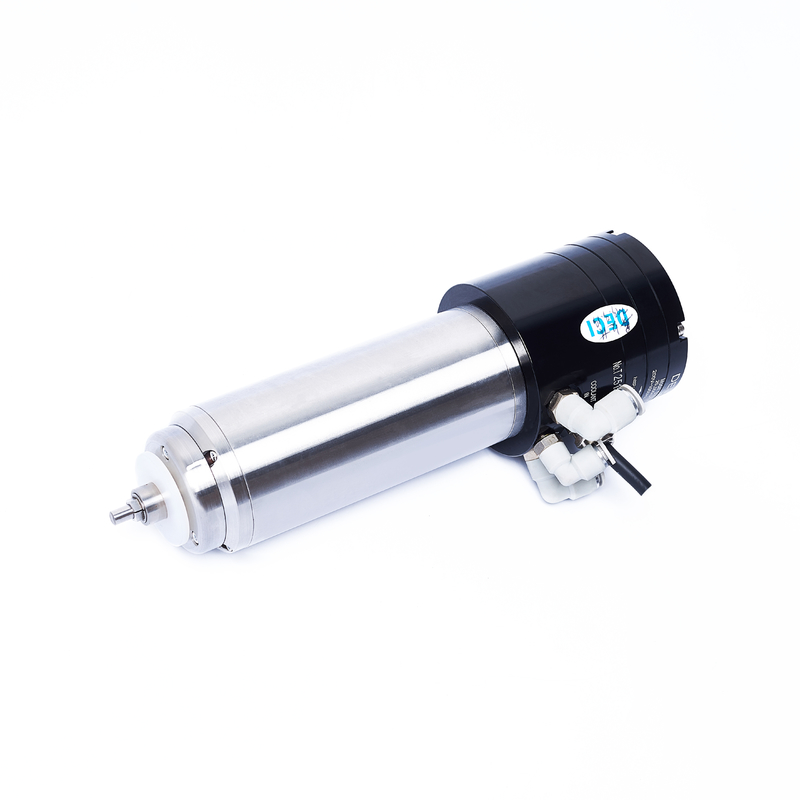

DECI ATC 0.7KW 20000Rmp machine tool Lathe CNC spindle motor
This product is a high-speed motor spindle with max speed of 20000rpm and rated power of 0.7KW. It is widely used in the processing of composite materials such as denture machine, zirconia, ceramics and titanium alloy with high precision drilling, milling and grinding.
DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.

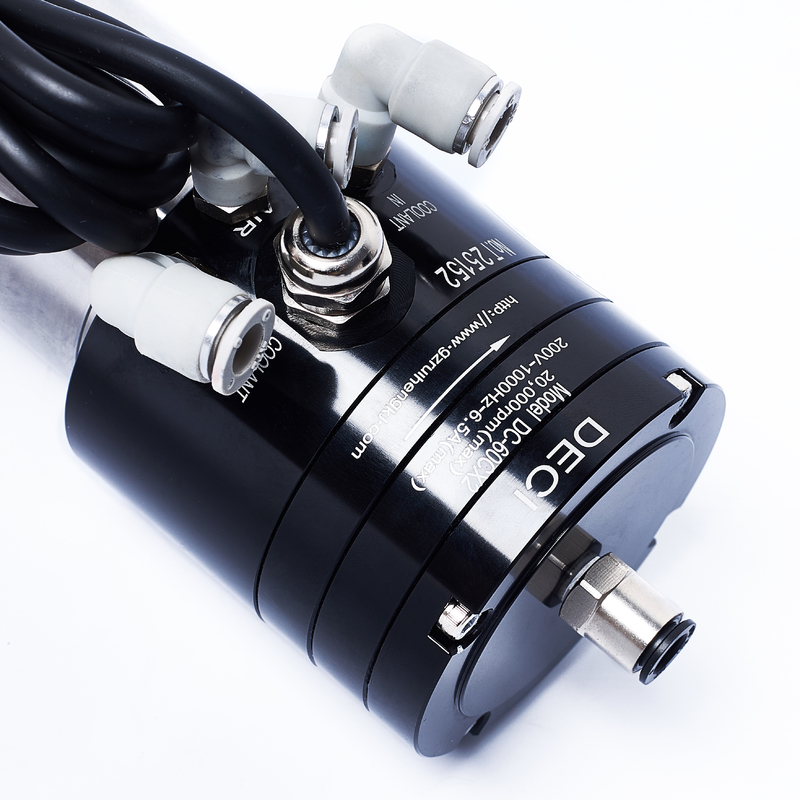

DECI DC-60CX2Parameters Motor Power:0.7KWRated voltage:200V/ACMax rotate speed :20000Rpm/minMax currency:2AMax Frequency:1000HzChuck Torque:≥254(Φ6Shank)Specification Shaft-end Cone Run-out:1.27(max)Upper limit frequency:333HzTooling Exchange Method:ATCCylinder working Pressure:5.6-6.0Kgf/cm² Mounting diameter:Φ60.902-61.91Cooling system coolant flow:water≥1.6L/min,oil≥3.0L/minShaft end static deflection:≤2.0umCoolant air pressure:water≥2.5Kgf/cm²,oil≥4.0Kgf/cm²Shaft end dynasmic deflection:≤8umMotor winding insulation resistance:≥500(H Level)MΩNoise value:≤72dBAMotor winding withstand voltage test:1500V/1minute withstand voltage testBalance Level :≤0.8mm/sSpindle blowing pressure:2.5-3.0Kgf/cm²Weight:3.9kgSpindle blowing dust flow:≥60L/min |
Q2:Do you have the products in stock?
A2:Our products are manufactured according to your order required except normal products.
Q4:How does your factory do regarding quality control?
A4:Quality is priority. Quality first. We We have been paying close attention to the quality control in the production process to ensure each product passes various tests before shipping.
Q5.How about the warranty of the products?
A5: We offer 12 months of technical service and after-sales service. If any problem about the machine after receivd, feel free to contact us.
Q6:How do you make our business long-term and good relationship?
A6:1.DECI keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
