DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards

DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards

Products - Dental Milling Machine Spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    1.36
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    Hot Product
  • Application
    Dentures
  • Maximum Torque
    0.056N.M
  • Drive
    Motor
  • Operating Speed
    40000rpm
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor
  • Product Name
    Denture Spindle Motor
  • Diameter
    40mm
  • Power
    350W
  • Voltage
    100(3~)
  • Frequency
    1000HZ
  • Rotated Speed
    60000rpm
  • Current
    3.5A
  • Weight
    1.35kg
  • Cooling Method
    Air-cooled
  • Tooling Exchange Method
    ATC
  • Application Material
    Zirconia Wax PMMA PEEK
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $1,242.00/sets 1-9 sets
  • Supply Ability
    500 Set/Sets per Month

DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards

  • DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards
  • DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards
  • DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards
  • DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards
  • DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards
  • DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards
Get Price Contact Now
Product Description

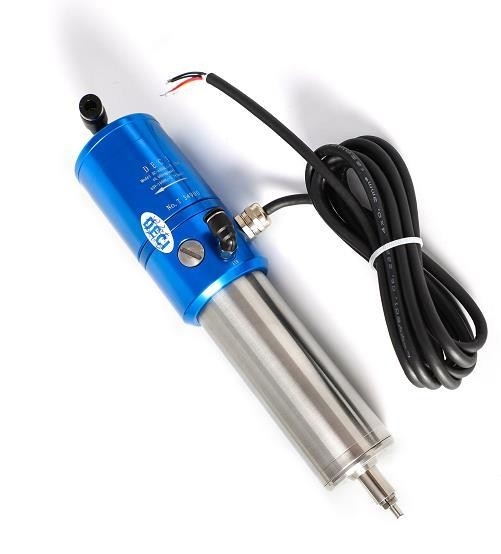

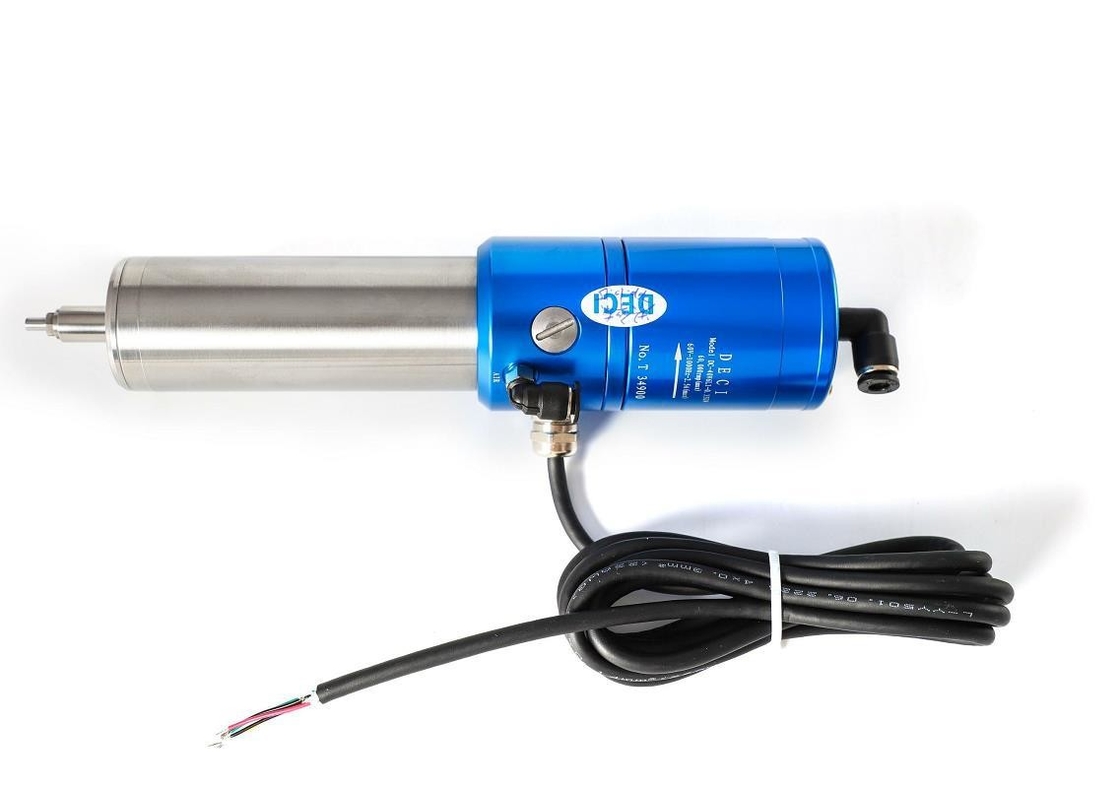

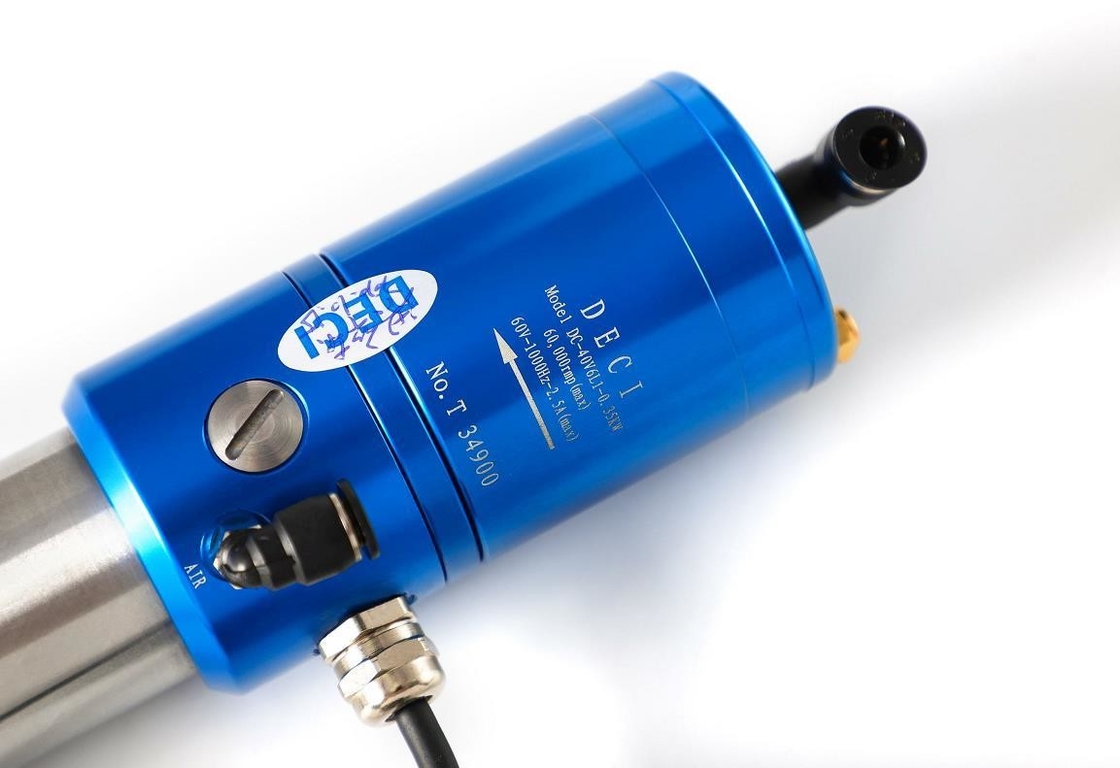

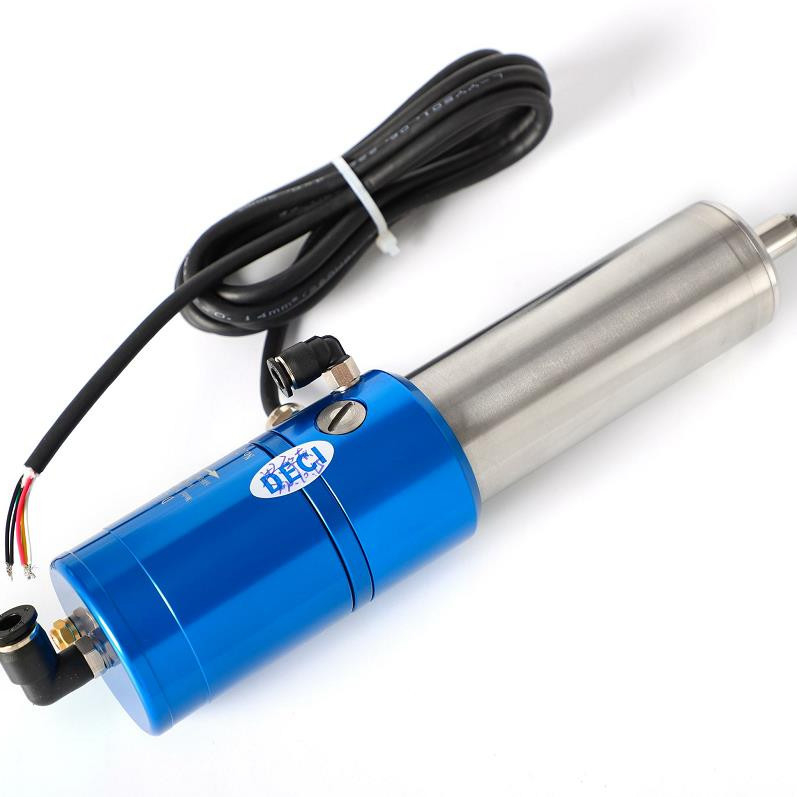

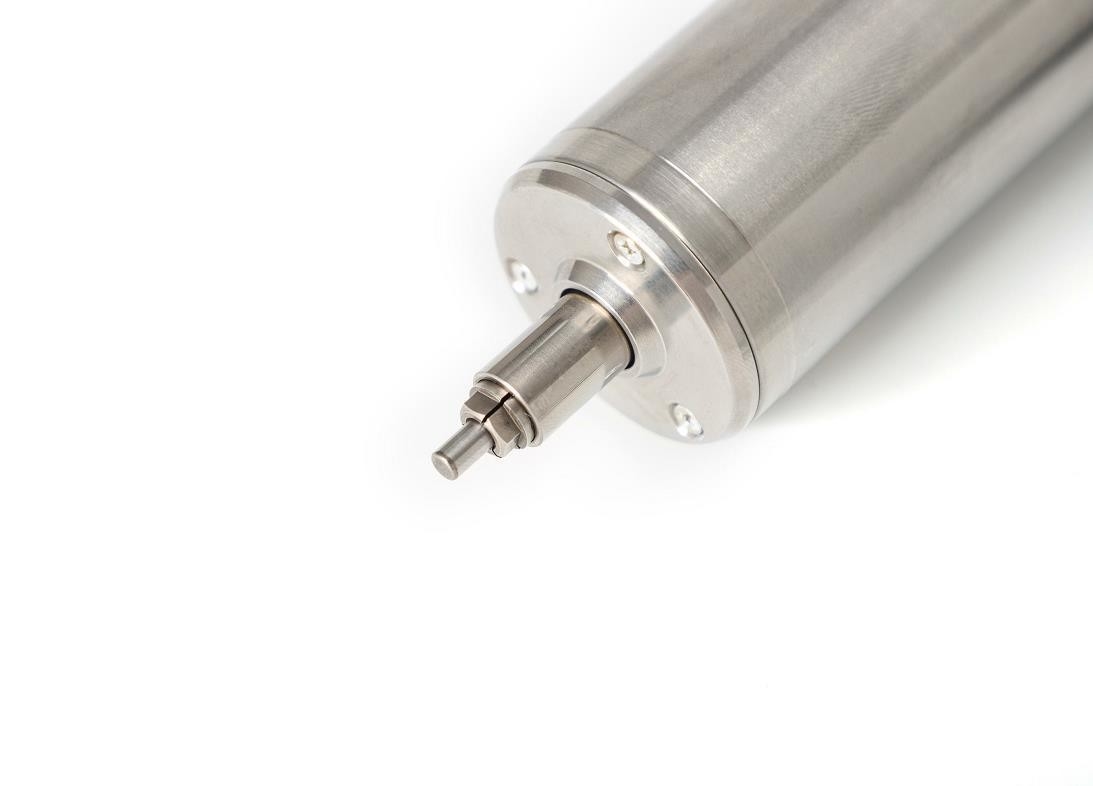

DECI high quality air cooled 60000Rmp 350W spindle motor atc cnc Router denture machine
This product is a metal cutting high speed motor spindle with a maximum speed of 60000 rpm and a rated power of 350W. It is suitable for the processing of soft materials such as zirconia for denture machine and high precision cutting of PCB circuit board.

DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.

DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards 0
DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards 1
DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards 2
DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards 3
DECI   DC-40V6
Parameters
Motor Power:
0.35KW
Rated voltage:
100v(3~)
Max rotate speed :
60000rpm/min
Max currency:
3.5A
Max Frequency:
1000Hz
Torque:
0.056N.M
Specification
Shaft-end Cone Run-out:
≤0.001mm
Tooling Releasing Air Pressure:
5.0-6.0 Kgf/cm²
Tooling Exchange Method:
ATC
Air curtain pressure at front end:
__
Tooling Pulling Force:
≥1000 N
Tooling Back Air Pressure:
N/M
Tooling Connection:
Φ3/Φ3.175/4 Collet Chuck
Cooling:
Air-cooled
Encoder:
N/M
Coolant medium pressure:
1.0~1.5 Kgf/cm²
Approach Switch:
N/M
Bearing Lubrication Method:
Grease
Balance Level :
G1
Tooling Instalation Method:
Spindle holder clamp
Vibration Value:
≤0.8
Weight:
1.35kg
Packing&Shipping
We can ship according to our customers.
DECI Spindle / cnc in Machining.
spindle 1.5kw 60000rpm
spindle motor 1.5kw
DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards 4
Related Products
Applicable industry
DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards 5
Why Choose Us
DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards 6
Company Profile
DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards 7
DECI Brand
Guangzhou Ruiheng Technology Co., Ltd is located in the Eastern Development Zone of Guangzhou. The company was established in 2009. We are a national high-tech enterprise integrating R&D, production, sales and maintenance of high-speed electric spindle. With the concerted efforts of all employees, a number of self-developed patented products, and the rapid development of the industry, the product quality and accuracy requirements are getting higher and higher. For this reason, the company has introduced advanced high-precision production of Swiss, German, British, Korean and other technologies for the electric spindle. Equipment and testing and calibration equipment, with the goal of "doing fine, coming stronger and bigger", more than 60% of our products are exported to the United States, Europe, India, Brazil, Dubai and other countries to help customers continuously update with quality service. Work hand in hand with customers, develop together, use morality as a product, and create a first-class product with magnetic "DECI" to help China create!
DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards 8
DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards 9
DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards 10
Certifications
DECI atc dental milling machine tool spindle motor DC-40V6 40mm for zirconia and high-precision cutting of PCB circuit boards 11
FAQ
Q1:Are you a trading company or a manufacturer?
A1: We are the manufacturer of DECI electric spindle motors.

Q2:Do you have the products in stock?
A2:Our products are manufactured according to your order required except normal products.

Q3:Can I get some samples first?
A3: We can supply the sample if in stock, but the customers have to pay the sample cost and the courier cost..

Q4:How does your factory do regarding quality control?
A4:Quality is priority. Quality first. We We have been paying close attention to the quality control in the production process to ensure each product passes various tests before shipping.

Q5.How about the warranty of the products?
A5: We offer 12 months of technical service and after-sales service. If any problem about the machine after receivd, feel free to contact us.

Q6:How do you make our business long-term and good relationship?
A6: 1).DECI keep good quality and competitive price to ensure our customers benefit ;
2).We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
