38mm Diameter DECI ATC 350W 60000rpm 100V Dental Spindle Motor for Denture Machine

38mm Diameter DECI ATC 350W 60000rpm 100V Dental Spindle Motor for Denture Machine

  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Other, Medical
  • Weight (KG)
    3
  • Showroom Location
    None
  • Video Outgoing-inspection
    Not Available
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Milling
  • Maximum Torque
    0.056N.M
  • Drive
    Motor
  • Operating Speed
    60000rpm
  • Warranty
    6 Months
  • Core Components
    Bearing, Motor
  • Product Name
    DC-38D Spindle
  • Diameter
    38mm
  • Power
    0.35kw
  • Voltage
    100(3~)
  • Frequency
    1000HZ
  • Current
    3.5A
  • Weight
    1.9kg
  • Cooling Method
    Air Cooling
  • Tooling Exchange Method
    ATC
  • Installation Method
    Clamp Holder
  • Application Material
    Zirconia Wax PMMA PEEK
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $1,179.00/sets 1-9 sets
  • Supply Ability
    500 Set/Sets per Month

38mm Diameter DECI ATC 350W 60000rpm 100V Dental Spindle Motor for Denture Machine

Product Description

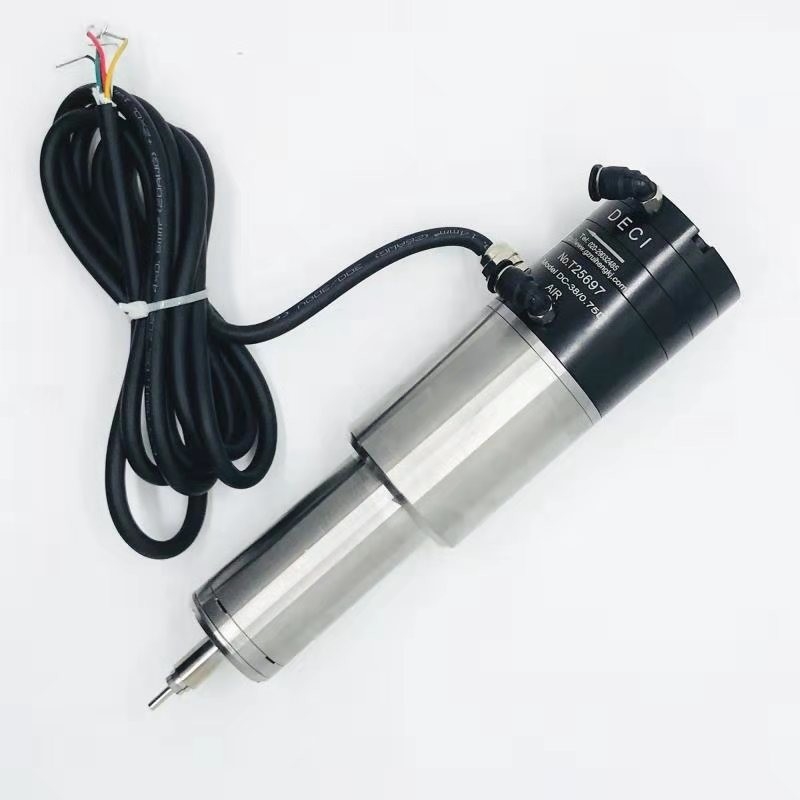

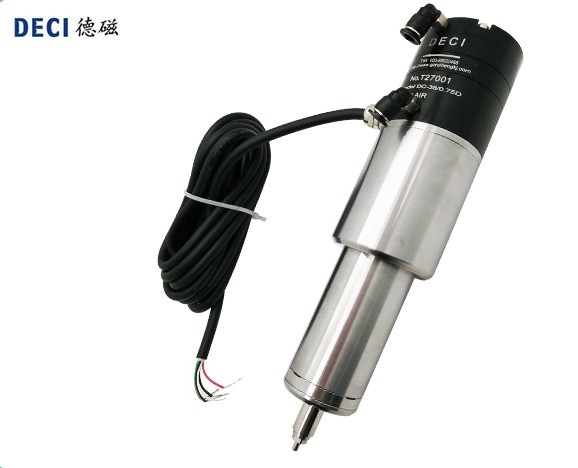

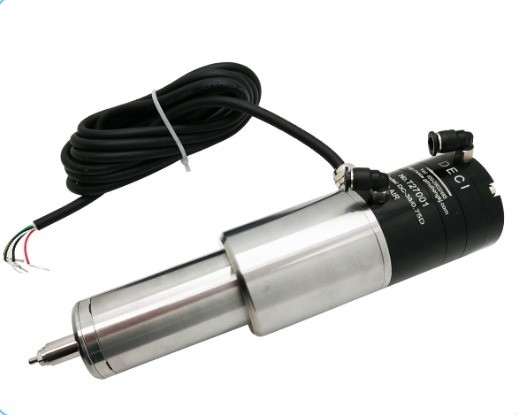

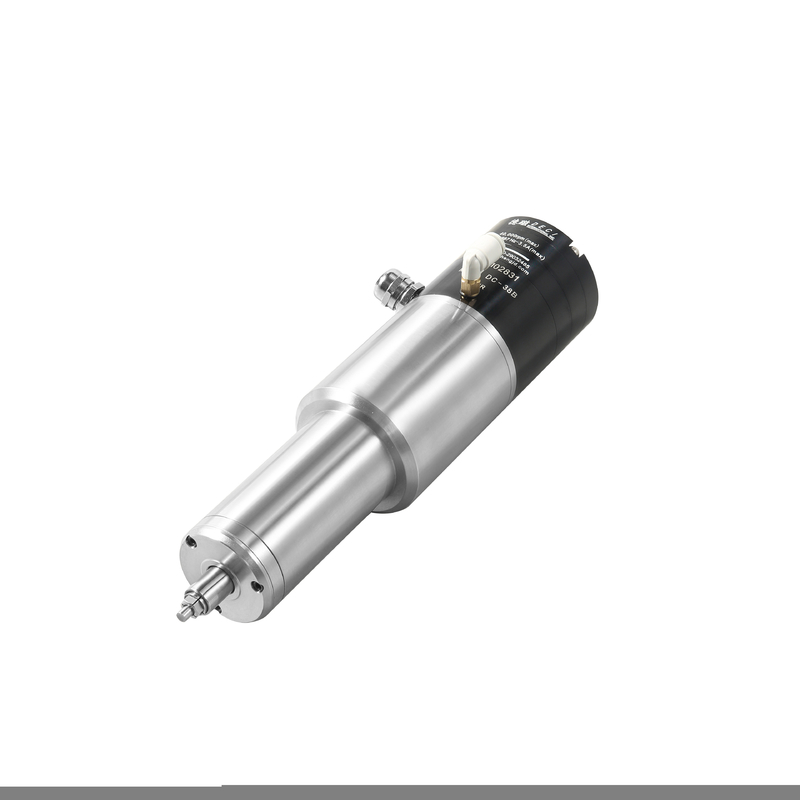

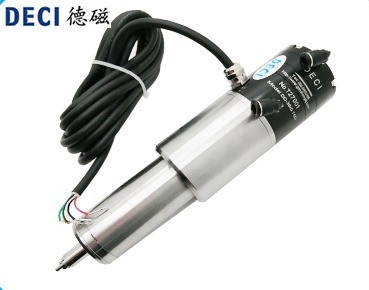

DECI ATC 0.35KW 60000RPM Automatic tool change dental spindle denture machine

This product is a metal cutting high speed motor spindle with a maximum speed of 60000 rpm and a rated power of 350W. It is suitable for the processing of soft materials such as zirconia for denture machine.



DECI spindle Motor Feature

1) Imported bearings with good quality, long working life.

2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.

3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.

4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.







Specificiations

DECI ATC 350W 60000rpm 100V dental spindle motor denture machineDECI ATC 350W 60000rpm 100V dental spindle motor denture machine





DECI DC-38D
Parameters
Motor Power: 0.35KW  Rated voltage:  100v(3~)
 Max rotate speed : 60000rpm  Max currency: 3.5A
 Max Frequency: 1000Hz  Torque: 0.056N.M
Specification
Shaft-end Cone Run-out:  ≤0.001mm Tooling Releasing  Air Pressure:  5.0-6.0 Kgf/cm²
 Tooling Exchange Method:  ATC Air curtain pressure at front end:        __
 Tooling Pulling Force: ≥1000 N Tooling Back Air Pressure: ~
 Tooling Connection: Φ3/Φ3.175/Φ4 Collet  Cooling: Air cooling
 Encoder: N/M Coolant Pressure: 1.0-1.5 Kgf/cm²
 Approach Switch: N/M Bearing Lubrication Method: Grease
Balance Level :  G1 Tooling Instalation Method: Clamp holder
Vibration Value:  ≤0.8 Weight: 1.9kg
DECI ATC 350W 60000rpm 100V dental spindle motor denture machineDECI ATC 350W 60000rpm 100V dental spindle motor denture machine

Applicable industry

DECI ATC 350W 60000rpm 100V dental spindle motor denture machine

Packaging & Shipping

DECI ATC 350W 60000rpm 100V dental spindle motor denture machine

Why choose us

DECI ATC 350W 60000rpm 100V dental spindle motor denture machine

Company Profile

DECI ATC 350W 60000rpm 100V dental spindle motor denture machine DECI ATC 350W 60000rpm 100V dental spindle motor denture machine

Certifications

DECI ATC 350W 60000rpm 100V dental spindle motor denture machine

FAQ

Q1:Are you a trading company or a manufacturer ?
A1: We are the manufacturer of DECI electric spindles.



Q2:Do you have the products in stock?

A2:Our products are manufactured according to your order required except normal products.


Q3:Can I get some samples first?

A3: We can supply the sample if in stock, but the customers have to pay the sample cost and the courier cost..


Q4:How does your factory do regarding quality control?
A4:Quality is priority. Quality first. We have been paying close attention to the quality control in the production process to ensure each product passes various tests before shipping.

Q5.How about the warranty of the products?

A5: We offer 12 months of technical service and after-sales service. If any problem about the machine after received, feel free to contact us.


Q6:How do you make our business long-term and good relationship?
A6:1.DECI keep good quality and competitive price to ensure our customers benefit ;
      2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

.
