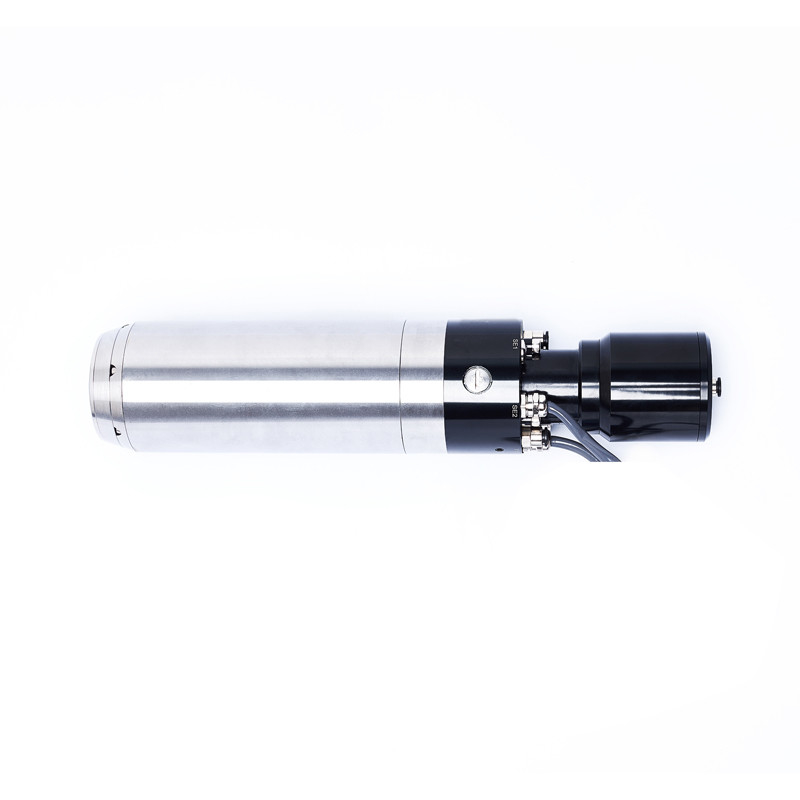

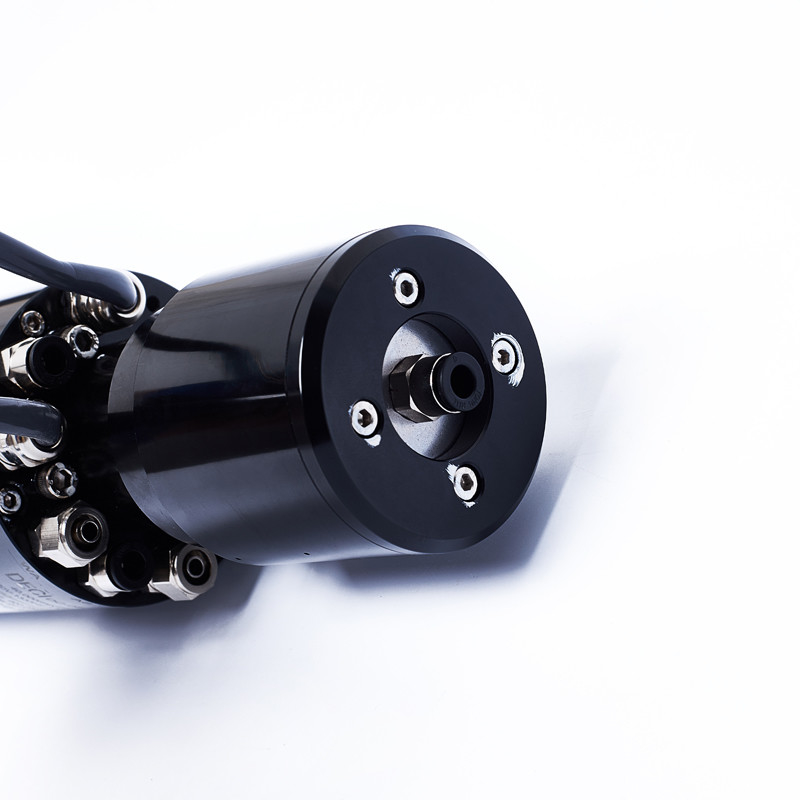

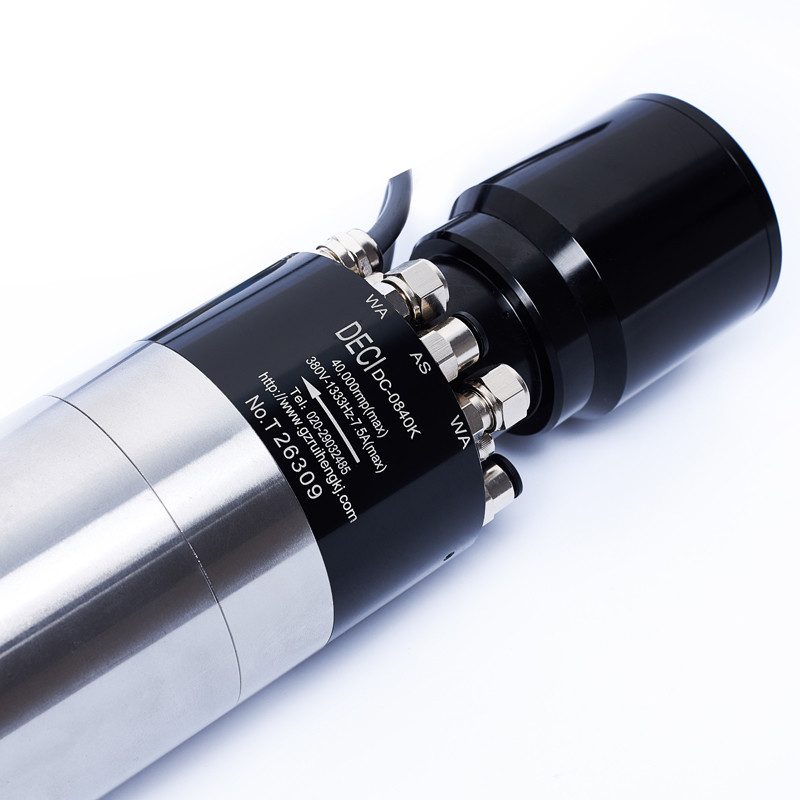

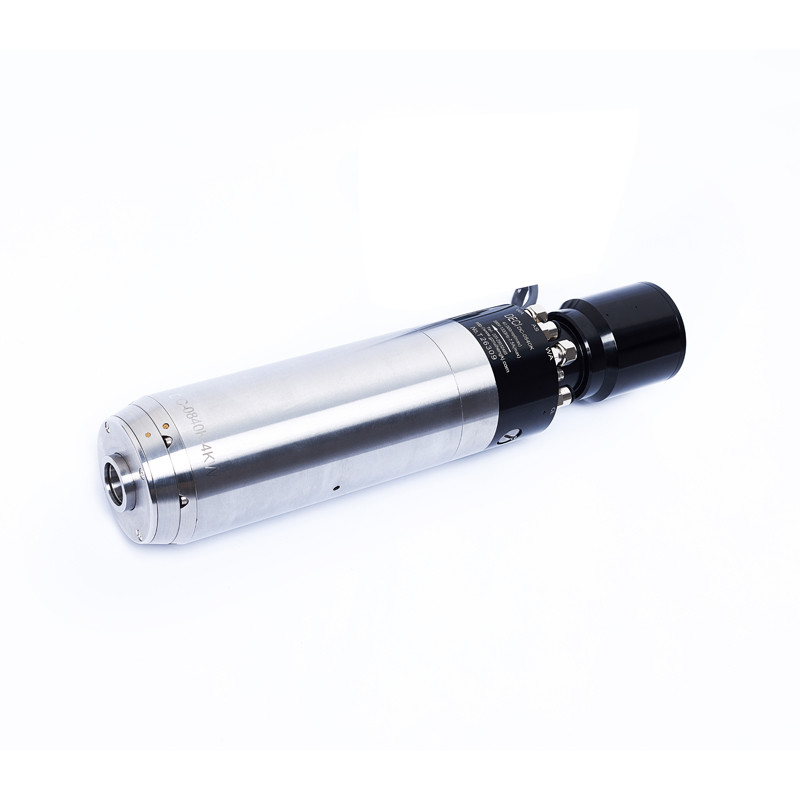

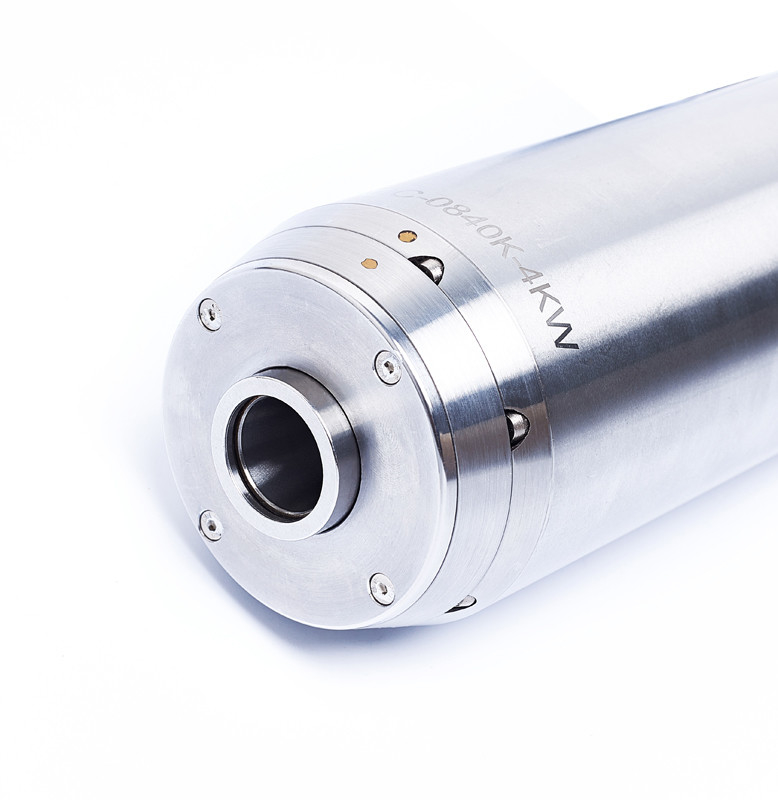

DC-0840K | ||||||
Parameters | ||||||
Moter Power(KW) | 4/3.7/2.5 | Rated voltage (V/AC) | 380 / 220(3~) | |||
Maximum speed(Rpm) | 40000 | Maximum current (A) | 7.5/7.1/4.8 | |||
Maximum frequency (Hz) | 1333 | Torque (N·M) | 1.27/0.88/0.6 | |||
Technical parameters | ||||||
Shaft Rotation Accuracy (mm) | ≤ 0.001 | Tooling Releasing pressure (Kgf/cm²) | 5.0-6.0 | |||
Tooling Exchange Method | ATC | Front curtain pressure (Kgf/cm²) | 2.5-3.0 | |||
Tooling Pulling Force(≥N) | 1100 | Tool return pressure(Kgf/cm²) | 5.6-6.0 | |||
Tooling Connection | ISO20 shank-ER16 | Cooling method | Water cooling | |||
Encoder (Optional) | Square wave / Sine wave | Coolant Pressure (Kgf/cm²) | ≥ 2.5 | |||
Proximity switch | PNP | Bearing lubrication mode | Grease | |||
Balance Level | G1 | Tooling Installation Method | Clamp | |||
Vibration value (mm/s) | ≤ 0.8 | Weigh (Kg) | 7.65 | |||
