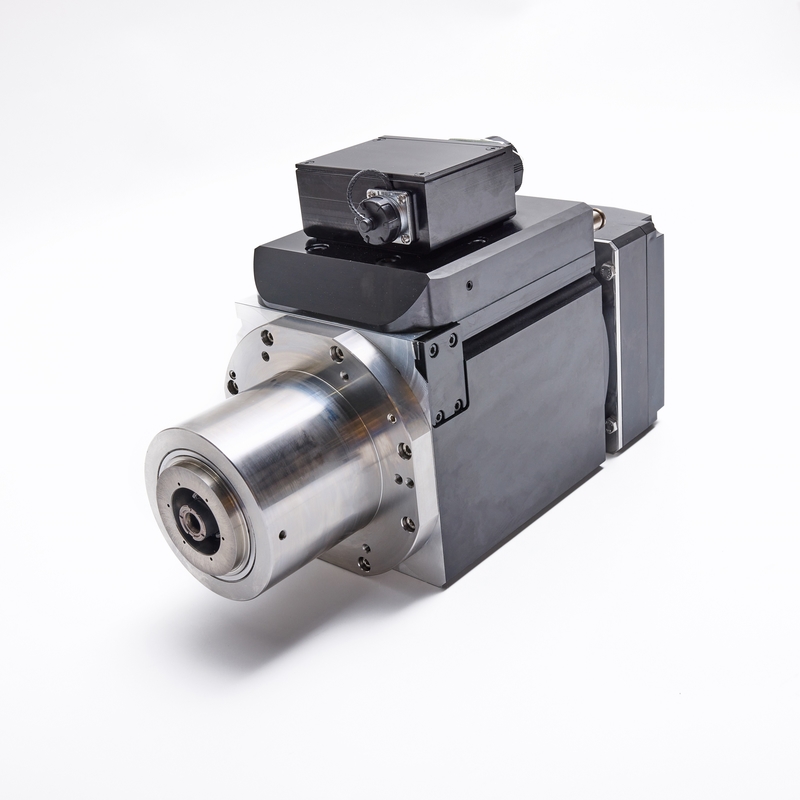

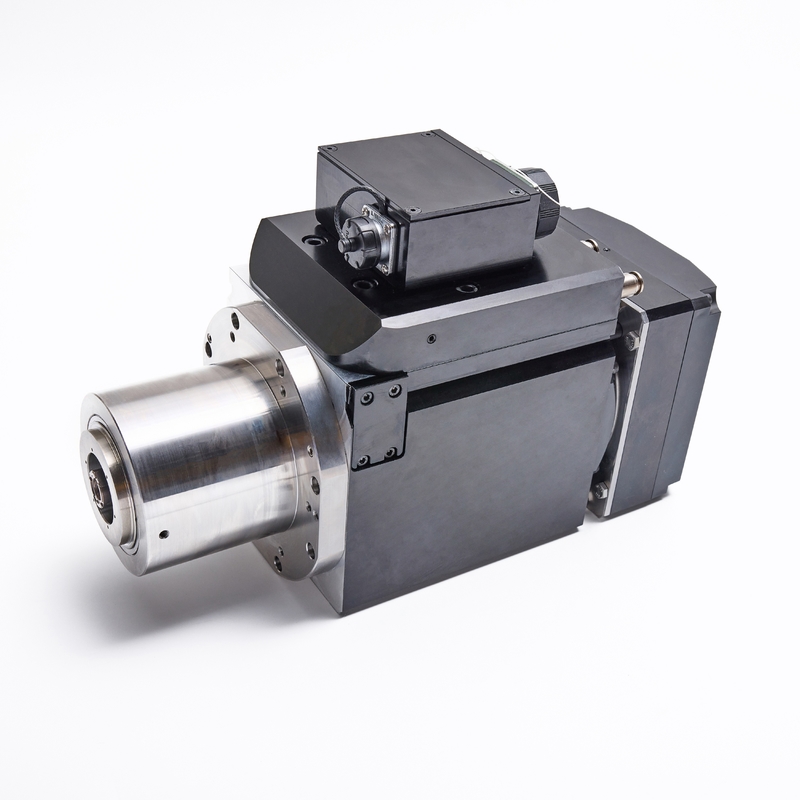

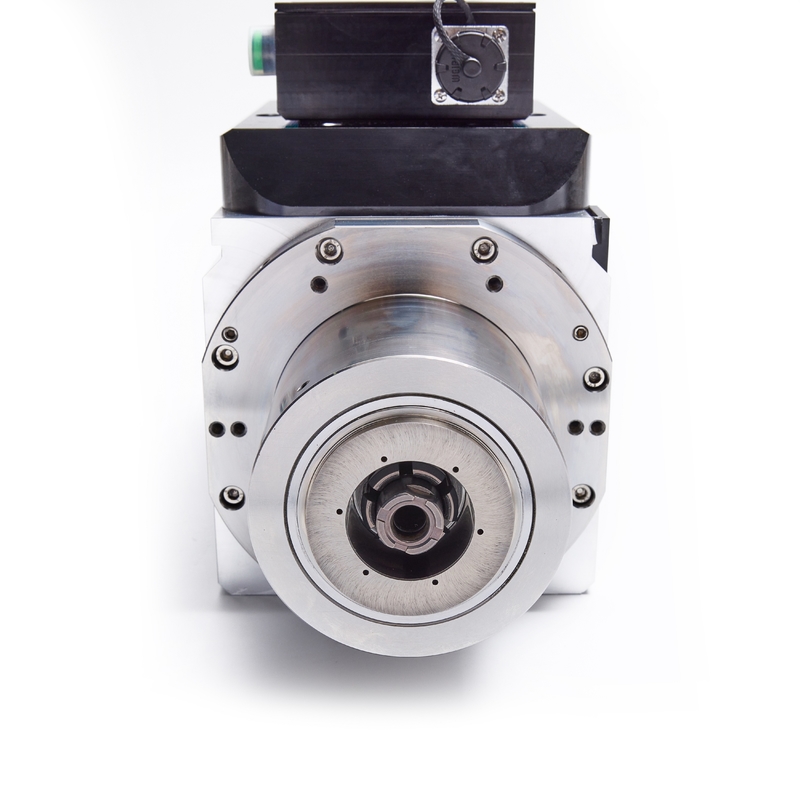

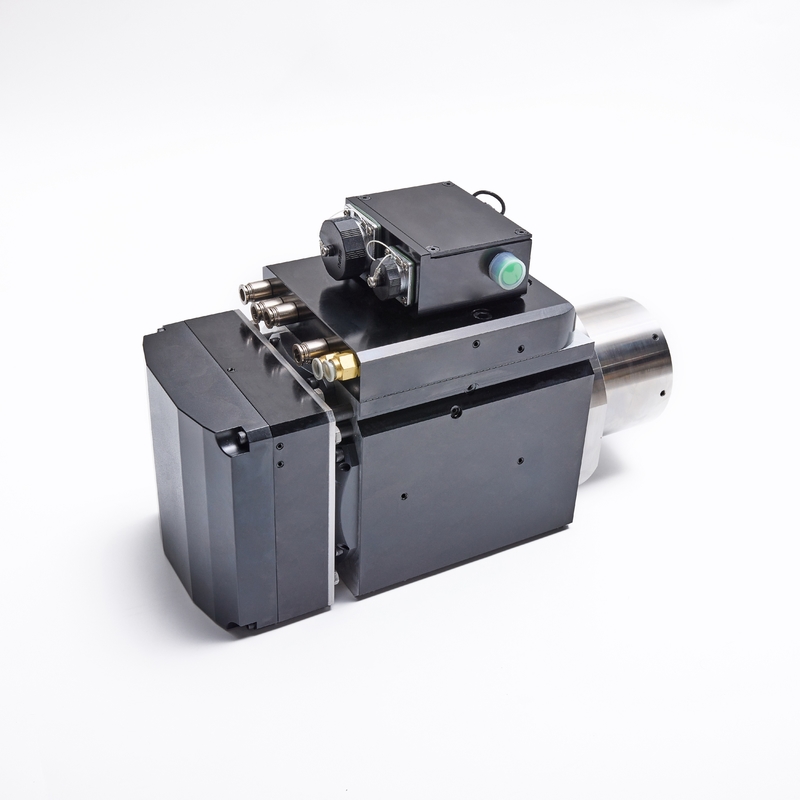

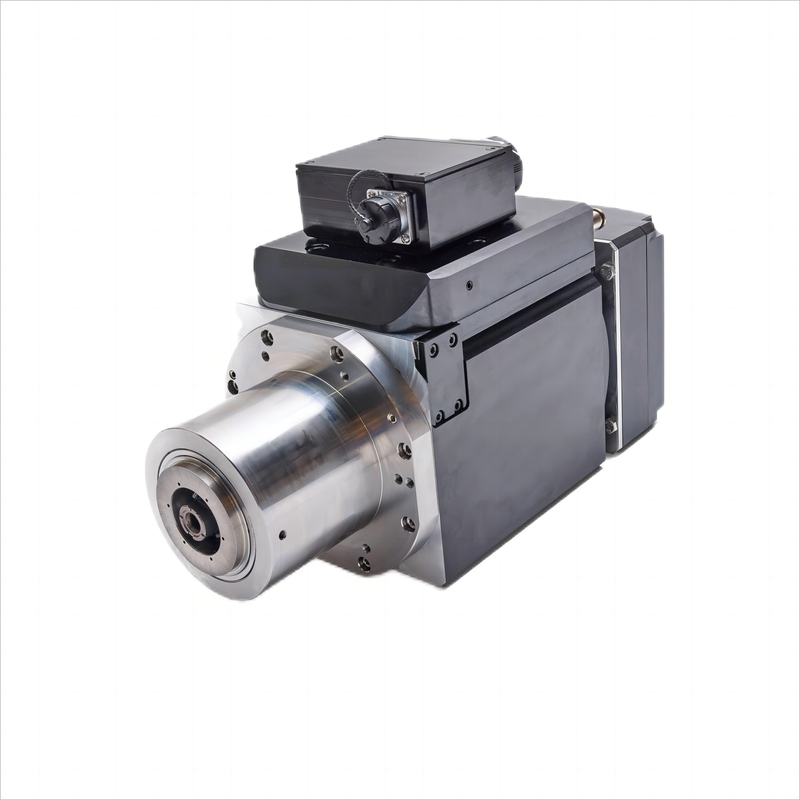

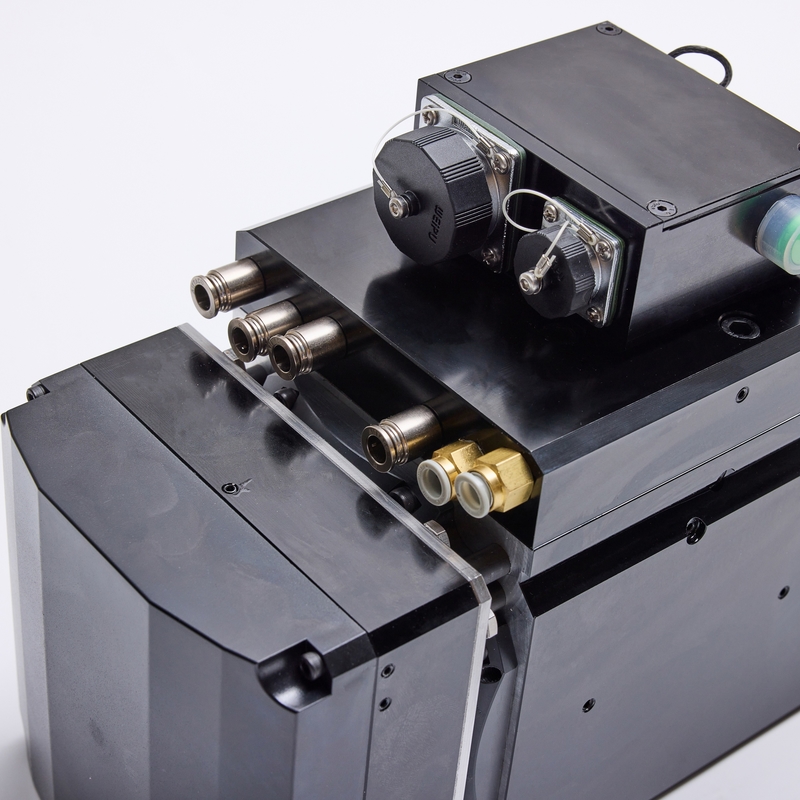

DECI High Accuracy Water cooling Metal Milling Spindle 15 Kw 12.2 Torque HSK63F 57A Motor ATC Base flange Spindle

DECI High Accuracy Water cooling Metal Milling Spindle 15 Kw 12.2 Torque HSK63F 57A Motor ATC Base flange Spindle

Products - 5 Axis spindle motor
  • Condition
    New
  • Applicable Industries
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Printing Shops, Construction Works , Energy & Mining, Advertising Company
  • Weight (KG)
    28
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    Hot Product 2024
  • Application
    DRILLING
  • Maximum Torque
    12.2
  • Drive
    Motor
  • Operating Speed
    24000
  • Warranty
    1 Year
  • Core Components
    Engine, Bearing, Motor, Gear
  • Power
    15KW
  • Product Name
    CNC Spindle
  • Cooling Type
    Water Ccoling
  • Joint Of Nose
    BT30 Tool Holder
  • Voltage
    220V/380V
  • Speed
    24000 Rpm
  • Collet
    BT30 CNC ATC Spindle
  • Frequency
    800Hz
  • Lubrication
    Greese
  • Usage
    Metal Or Non-metal
  • Place of Origin
    Guangdong, China
  • Brand Name
    DECI
  • Price
    $5,000.00/sets 1-9 sets

DECI High Accuracy Water cooling Metal Milling Spindle 15 Kw 12.2 Torque HSK63F 57A Motor ATC Base flange Spindle

  • DECI High Accuracy Water cooling Metal Milling Spindle 15 Kw 12.2 Torque HSK63F 57A Motor ATC Base flange Spindle
  • DECI High Accuracy Water cooling Metal Milling Spindle 15 Kw 12.2 Torque HSK63F 57A Motor ATC Base flange Spindle
  • DECI High Accuracy Water cooling Metal Milling Spindle 15 Kw 12.2 Torque HSK63F 57A Motor ATC Base flange Spindle
  • DECI High Accuracy Water cooling Metal Milling Spindle 15 Kw 12.2 Torque HSK63F 57A Motor ATC Base flange Spindle
  • DECI High Accuracy Water cooling Metal Milling Spindle 15 Kw 12.2 Torque HSK63F 57A Motor ATC Base flange Spindle
  • DECI High Accuracy Water cooling Metal Milling Spindle 15 Kw 12.2 Torque HSK63F 57A Motor ATC Base flange Spindle
Get Price Contact Now
DC-WZ-150AC-HSK63F(WZ)
Parameters
Moter Power(KW)
15
Rated voltage (V/AC)
380 / 220
Maximum speed(Rpm)
24000
Maximum current (A)
57/42
Maximum frequency (Hz)
800
Torque (N·M)
12.2
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0
Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0
Tooling Pulling Force(≥N)
11000
Tool return pressure(Kgf/cm²)
Spring return knife
Tooling Connection
HSK63F
Cooling method
Water cooling
Encoder (Optional)
 Sin or Cos, 1 VPP
Coolant Pressure (Kgf/cm²)
≥ 2.5
Proximity switch
PNP
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
Base Flange
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
28
