DECI 2.2/1.8/1.5/1.2kw 60000rpm manual tool change 1000hz spindle motor 220V water cooled spindle ER 11 collet spindle

DECI 2.2/1.8/1.5/1.2kw 60000rpm manual tool change 1000hz spindle motor 220V water cooled spindle ER 11 collet spindle

Products - Electro Spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    4
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    0.28N.M
  • Drive
    Motor
  • Operating Speed
    60000rpm
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor
  • Product Name
    Spindle
  • Power
    2.2/1.8/1.5/1.2kw
  • Voltage
    220(3~)
  • Frequency
    1000HZ
  • Current
    7.2/6.5/5.0/4.3
  • Weight
    3.5kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    Manual
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $900.00/pieces 1-9 pieces

DECI 2.2/1.8/1.5/1.2kw 60000rpm manual tool change 1000hz spindle motor 220V water cooled spindle ER 11 collet spindle

  • DECI 2.2/1.8/1.5/1.2kw 60000rpm manual tool change 1000hz spindle motor 220V water cooled spindle ER 11 collet spindle
  • DECI 2.2/1.8/1.5/1.2kw 60000rpm manual tool change 1000hz spindle motor 220V water cooled spindle ER 11 collet spindle
  • DECI 2.2/1.8/1.5/1.2kw 60000rpm manual tool change 1000hz spindle motor 220V water cooled spindle ER 11 collet spindle
  • DECI 2.2/1.8/1.5/1.2kw 60000rpm manual tool change 1000hz spindle motor 220V water cooled spindle ER 11 collet spindle
  • DECI 2.2/1.8/1.5/1.2kw 60000rpm manual tool change 1000hz spindle motor 220V water cooled spindle ER 11 collet spindle
  • DECI 2.2/1.8/1.5/1.2kw 60000rpm manual tool change 1000hz spindle motor 220V water cooled spindle ER 11 collet spindle
Get Price Contact Now
Product Description

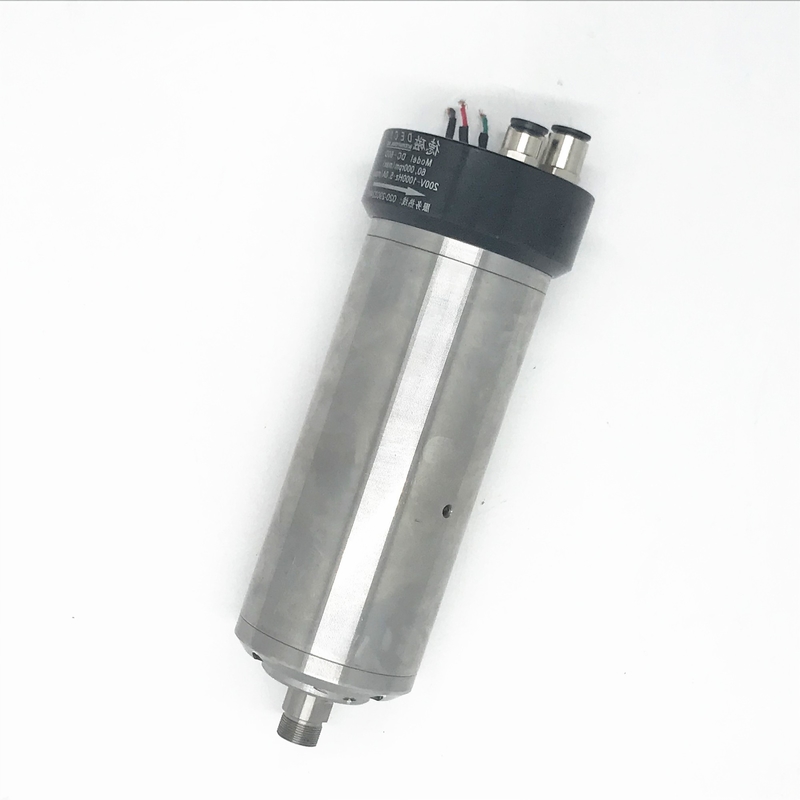

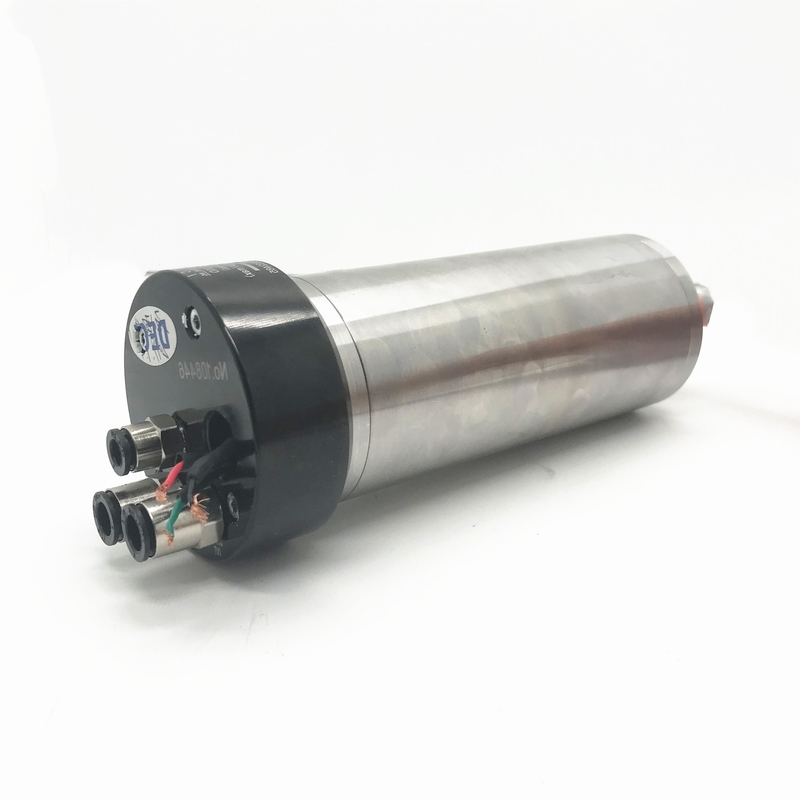

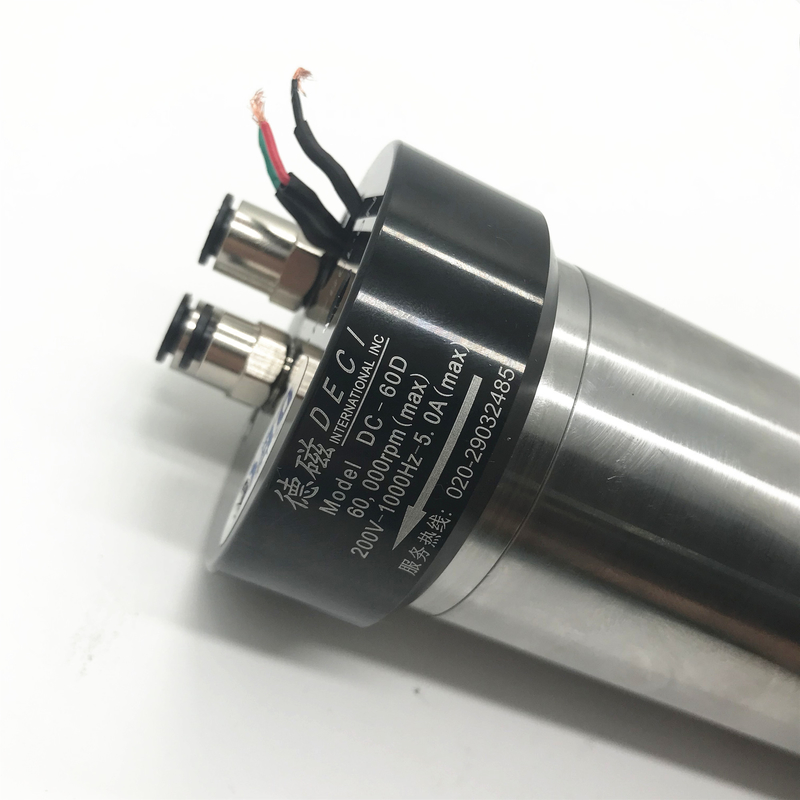

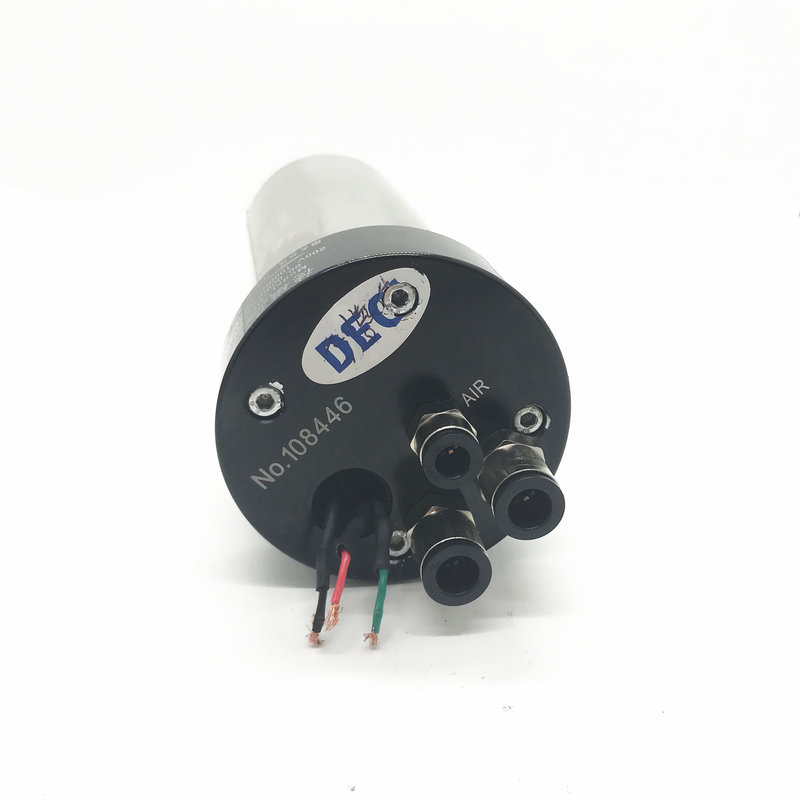

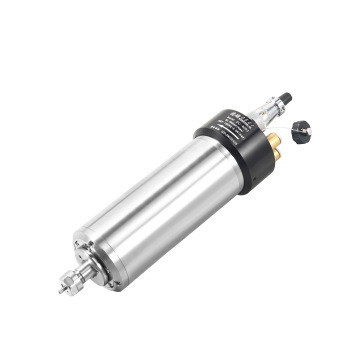

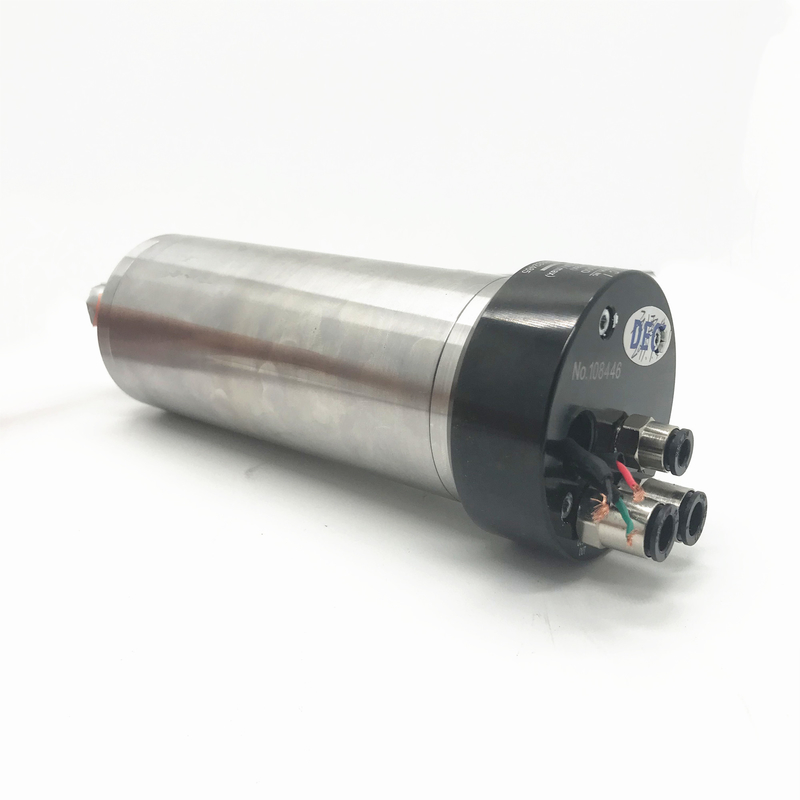

DECI 60000rpm 220V 2.2/1.8/1.5/1.2KW water cooling spindle motor
This product is a metal cutting high speed electric spindle with a maximum speed of 60000 rpm and power of 2.2/1.8/1.5/1.2KW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.
DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.

DECI 2.2/1.8/1.5/1.2kw 60000rpm manual tool change 1000hz spindle motor 220V water cooled spindle ER 11 collet spindle 0
DECI 2.2/1.8/1.5/1.2kw 60000rpm manual tool change 1000hz spindle motor 220V water cooled spindle ER 11 collet spindle 1
DECI 2.2/1.8/1.5/1.2kw 60000rpm manual tool change 1000hz spindle motor 220V water cooled spindle ER 11 collet spindle 2
DECI   DC-62D
Parameters
Motor Power:
2.2/1.8/1.5/1.2KW
Rated voltage:
220V(3~)
Max rotate speed :
60000rpm/min
Max currency:
7.2/6.5/5.0/4.3A
Max Frequency:
1000Hz
Torque:
0.35/0.28/0.24/0.19N.M
Specification
Shaft-end Cone Run-out:
≤0.001mm
Tooling Releasing Air Pressure:
N/M
Tooling Exchange Method:
manual tool change
Air curtain pressure at front end:
2.5~3.0 Kgf/cm²
Tooling Pulling Force:
─
Tooling Back Air Pressure:
N/M
Tooling Connection:
ER11
Cooling:
water cooling
Encoder:
N/M
Coolant Pressure:
≥2.5 Kgf/cm²
Approach Switch:
N/M
Bearing Lubrication Method:
Grease
Balance Level :
G1
Tooling Instalation Method:
Mechanical clip
Vibration Value:
≤0.8
Weight:
3.5kg
DECI 2.2/1.8/1.5/1.2kw 60000rpm manual tool change 1000hz spindle motor 220V water cooled spindle ER 11 collet spindle 3
DECI 2.2/1.8/1.5/1.2kw 60000rpm manual tool change 1000hz spindle motor 220V water cooled spindle ER 11 collet spindle 4
Packing&Shipping
Packed in export standard carton or plywood case, with PP bag, thick foam.
