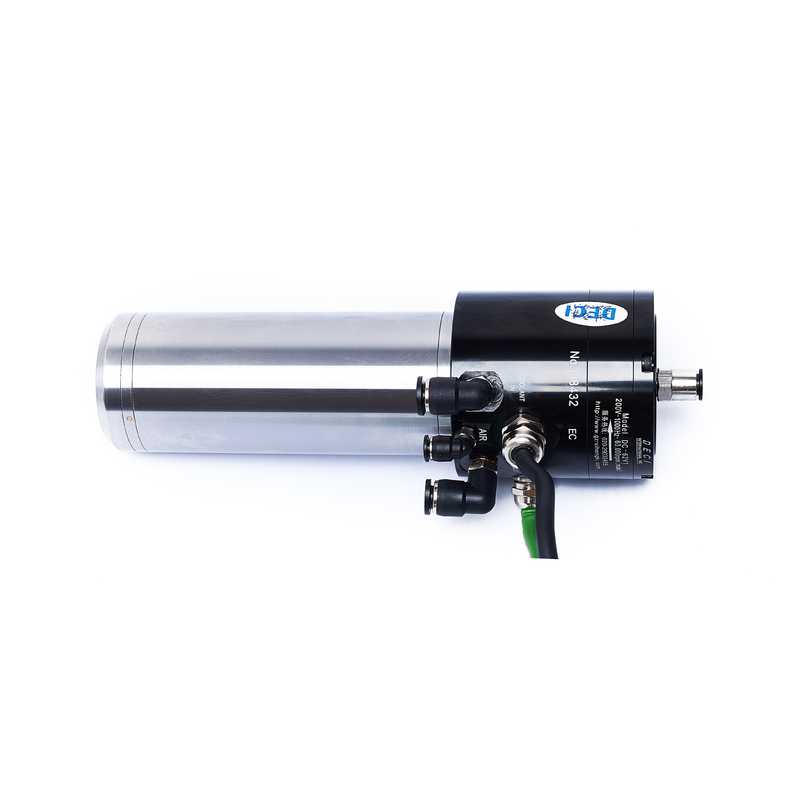

60000Rpm ATC Spindle 2.7KW 1000Hz 220V for DECI T11 ER11 Tool Drilling Water Cooling

Products - T11

Condition

New
Applicable Industries

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops
Weight (KG)

3.9
Showroom Location

None
Video Outgoing-inspection

Provided
Machinery Test Report

Provided
Marketing Type

New Product 2024
Application

DRILLING, Milling Cutter
Maximum Torque

0.43N.M
Drive

Motor
Operating Speed

60000rpm
Warranty

1 Year
Core Components

Engine, Bearing, Motor, Gear
Power

2.7KW
Voltage

220V(3~)
Frequency

1000HZ
Weight

3.9KG
Current

8.8A
Cooling Method

Water Cooling
Tools Connector

T11-ER11
Joint Of Nose

ER-11
Diameter

62mm
Place of Origin

Guangdong,China
Brand Name

DECI
Price

$1,188.00/units 1-24 units

60000Rpm ATC Spindle 2.7KW 1000Hz 220V for DECI T11 ER11 Tool Drilling Water Cooling

Name: 60000Rpm ATC Spindle 2.7KW 1000Hz 220V for DECI T11 ER11 Tool Drilling Water Cooling
Brand: DECI
SKU: DECI
Price: 1 USD
Availability: InStock
Rating: 4.7 (132 reviews)

button button

Get Price Contact Now

DC-62T11V2YC
Parameters
Moter Power(KW)	2.7(pm synchronous)	Rated voltage (V/AC)	220
Maximum speed(Rpm)	60000	Maximum current (A)	8.8
Maximum frequency (Hz)	1000	Torque (N·M)	0.43
Technical parameters
Shaft Rotation Accuracy (mm)	≤ 0.001	Tooling Releasing pressure (Kgf/cm²)	5.0-6.0
Tooling Exchange Method	ATC	Front curtain pressure (Kgf/cm²)	2.5-3.0
Tooling Pulling Force(≥N)	800	Tool return pressure(Kgf/cm²)	5.6-6.0
Tooling Connection	T11-ER11	Cooling method	Water cooling
Encoder (Optional)	—	Coolant Pressure (Kgf/cm²)	≥ 2.5
Proximity switch	PNP	Bearing lubrication mode	Grease
Balance Level	G1	Tooling Installation Method	Clamp
Vibration value (mm/s)	≤ 0.8	Weigh (Kg)	3.9

Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
