DECI HSK63A 20KW PMSM Spindle Motor machine tool CNC lathe spindle engraving electric motor 20000rpm 1000Hz

Products - Drilling

Condition

New
Applicable Industries

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
Weight (KG)

49.8
Showroom Location

None
Video Outgoing-inspection

Not Available
Machinery Test Report

Provided
Marketing Type

New Product 2020
Application

Runing, Milling, Drilling, Boring, For CNC Machine To Truning
Maximum Torque

35N.M
Drive

Motor
Operating Speed

20000rpm
Warranty

1 Year
Core Components

Bearing, Motor
Product Name

HSK63A Spindle
Power Motor

20kw PMSM
Voltage

380/220(3~)
Frequency

1000HZ
Current

57A
Weight

49.8kg
Cooling Method

Water Cooling
Tooling Exchange Method

ATC
Installation Method

Flange
Diameter

150mm
Place of Origin

Guangzhou,china
Brand Name

DECI
Price

$4,873.00/sets 1-9 sets

DECI HSK63A 20KW PMSM Spindle Motor machine tool CNC lathe spindle engraving electric motor 20000rpm 1000Hz

Name: DECI HSK63A 20KW PMSM Spindle Motor machine tool CNC lathe spindle engraving electric motor 20000rpm 1000Hz
Brand: DECI
SKU: DECI
Price: 4 USD
Availability: InStock
Rating: 4.9 (199 reviews)

button button

Get Price Contact Now

Product Description

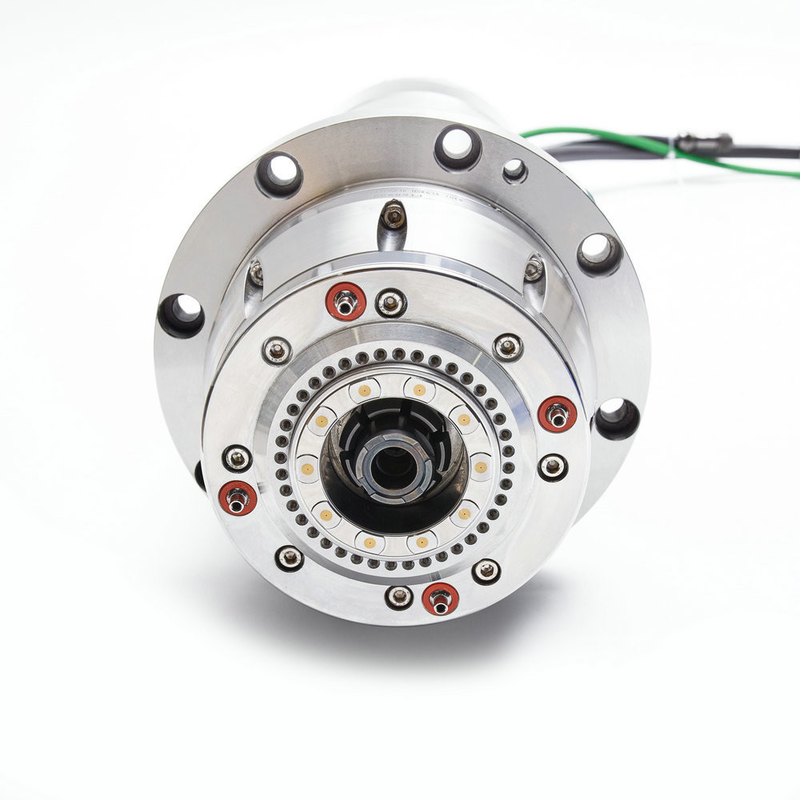

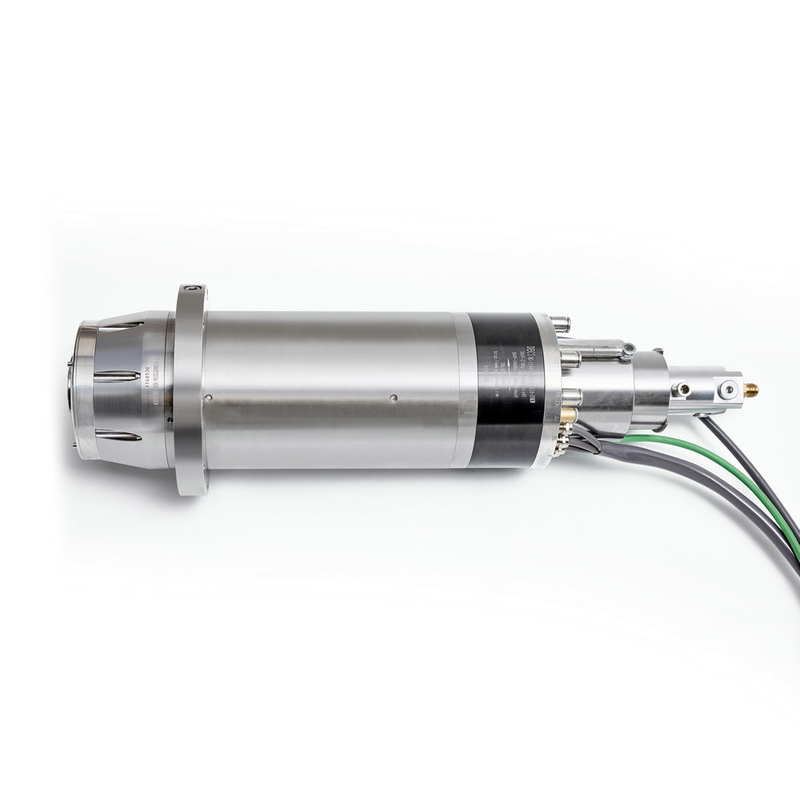

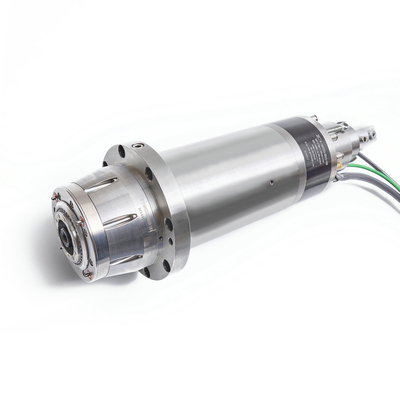

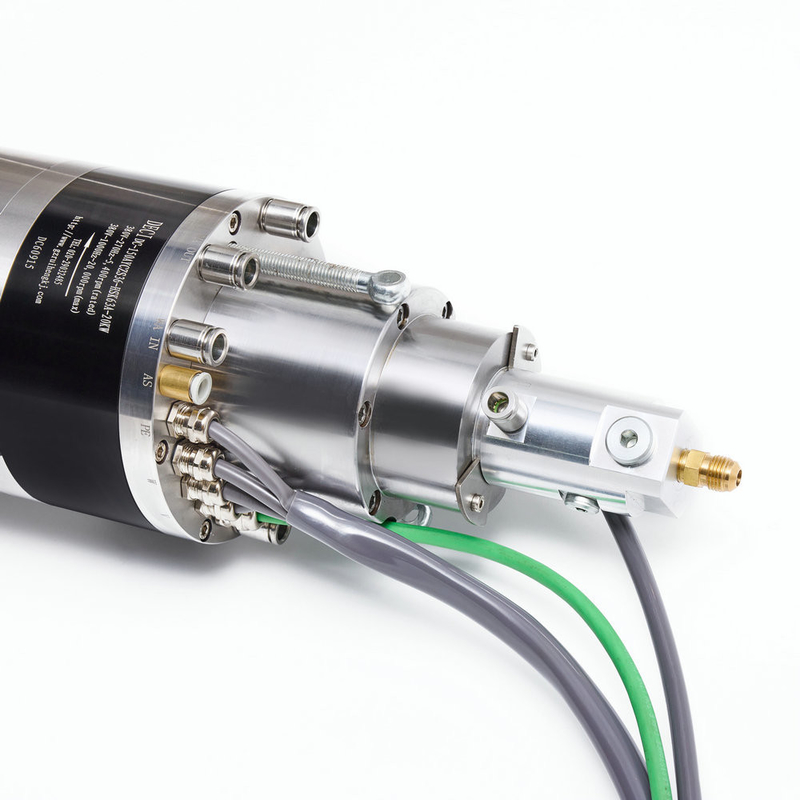

DECI HSK63A engraving and milling machine accessories denture soft material processing round motor spindle

This product is a metal cutting high speed motor spindle with a maximum speed of 20000 rpm and a rated power of 15/20 KW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.

DECI spindle Motor Feature

1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.

DECI DC-150A-HSK63A
Parameters
Motor Power:	15/20KW	Rated voltage:	380/220V(3~)
Max rotate speed :	20000Rpm/min	Max currency:	42/57A
Max Frequency:	667Hz	Torque:	22.4/29.4N.M
Specification
Shaft-end Cone Run-out:	≤0.001mm	Tooling Releasing Air Pressure:	50-80 Kgf/cm²
Tooling Exchange Method:	ATC	Air curtain pressure at front end:	2.5~3.0 Kgf/cm²
Tooling Pulling Force:	≥6000	Tooling Back Air Pressure:	5.6-6.0 Kgf/cm²
Tooling Connection:	HSK63A tool holder	Cooling:	water cooling
Encoder:	Square / sine wave (optional)	Coolant Pressure:	≥2.5 Kgf/cm²
Approach Switch:	PNP ON	Bearing Lubrication Method:	Grease
Balance Level :	G1	Tooling Instalation Method:	Mechanical clip
Vibration Value:	≤0.8	Weight:	49.8 kg

Packing&Shipping

Packed in export standard carton or plywood case, with PP bag, thick foam.
DECI Spindle / cnc in Machining.
diy atc spindle motor

atc spindle belt drivenatc spindle belt driven
