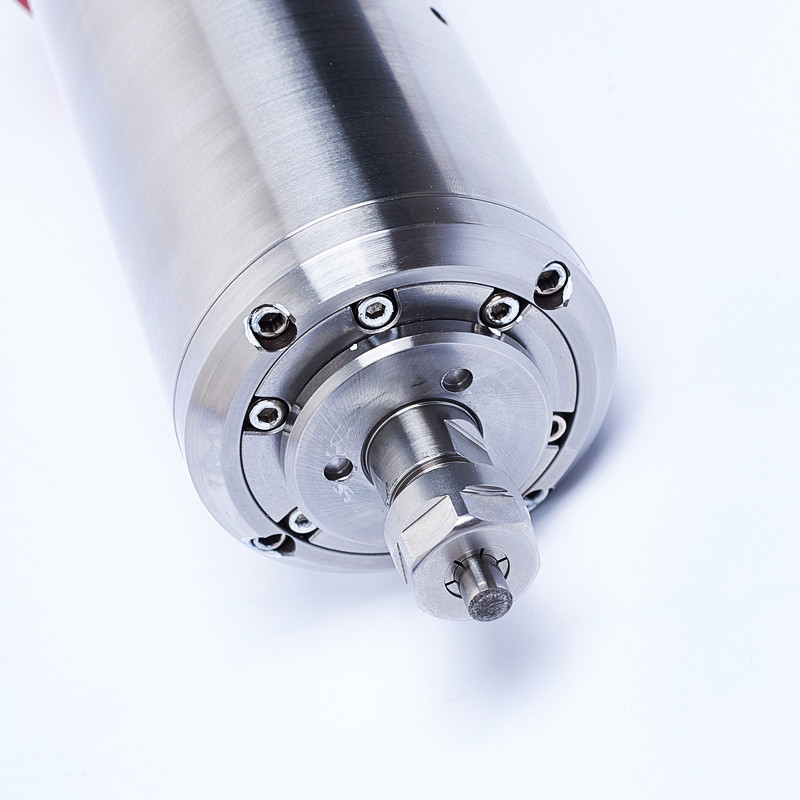

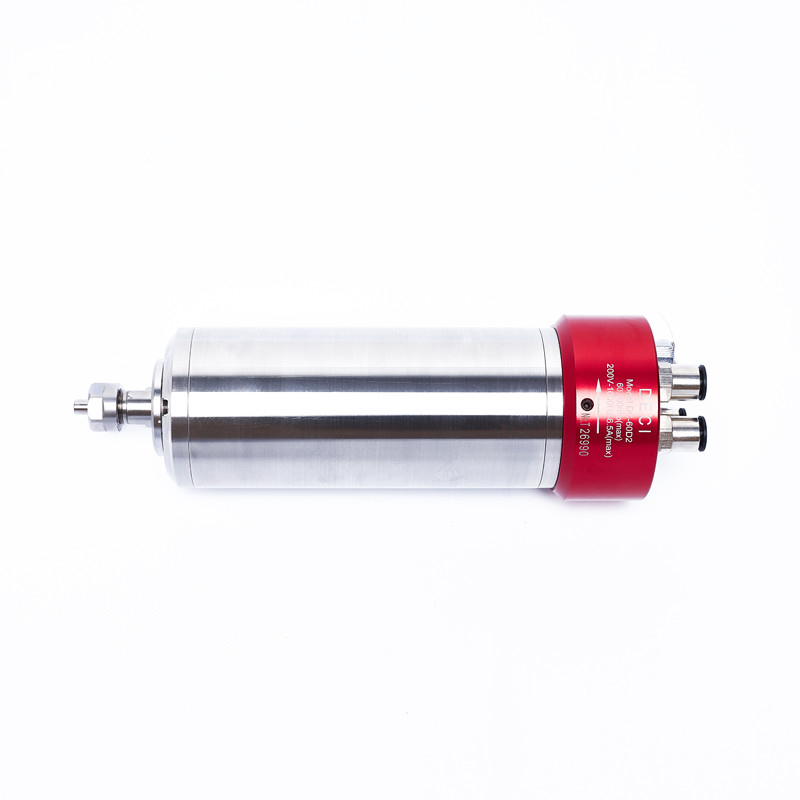

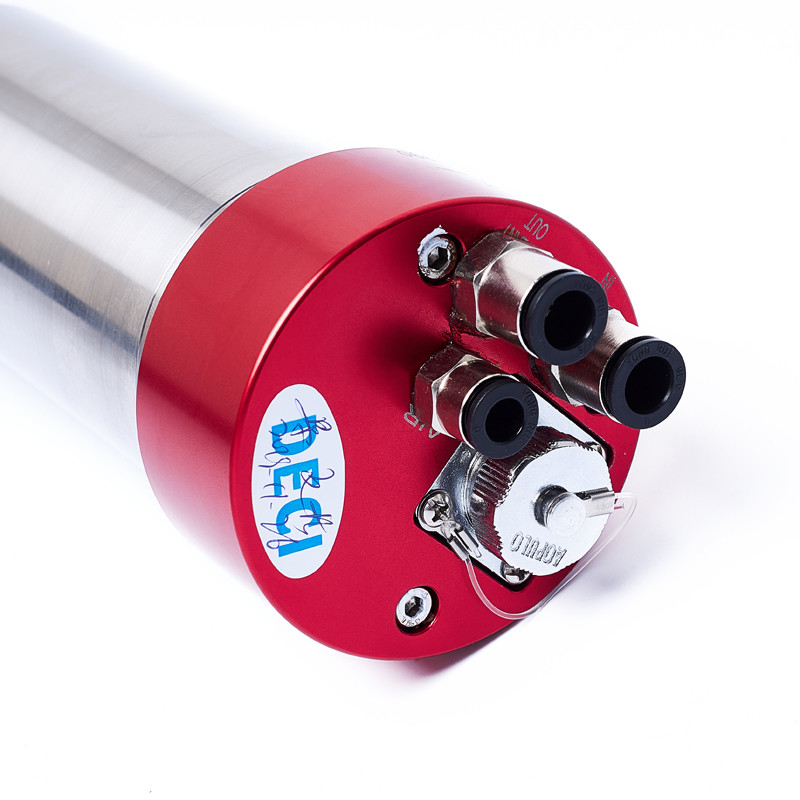

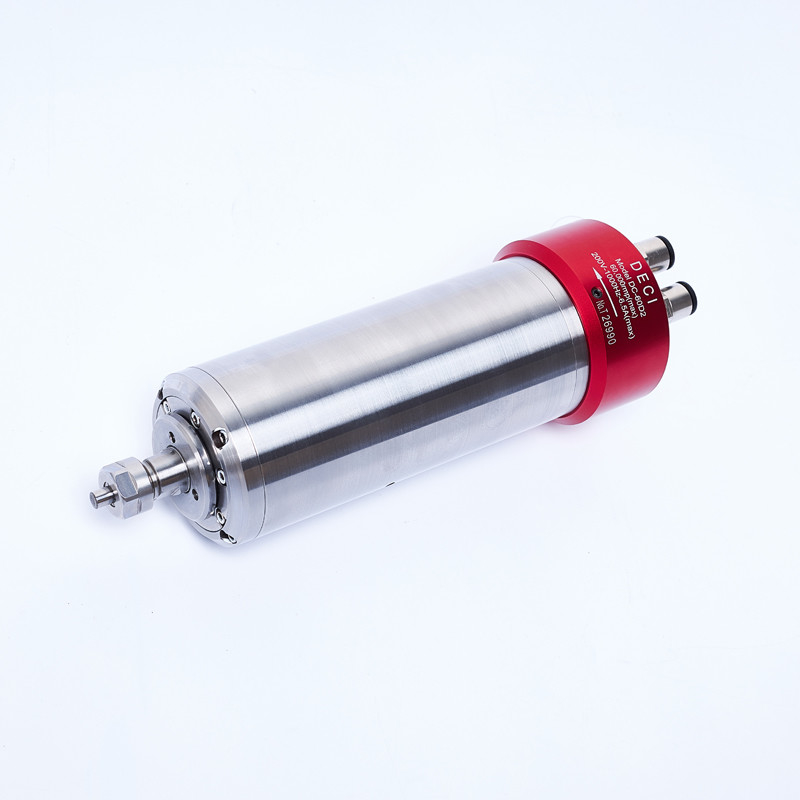

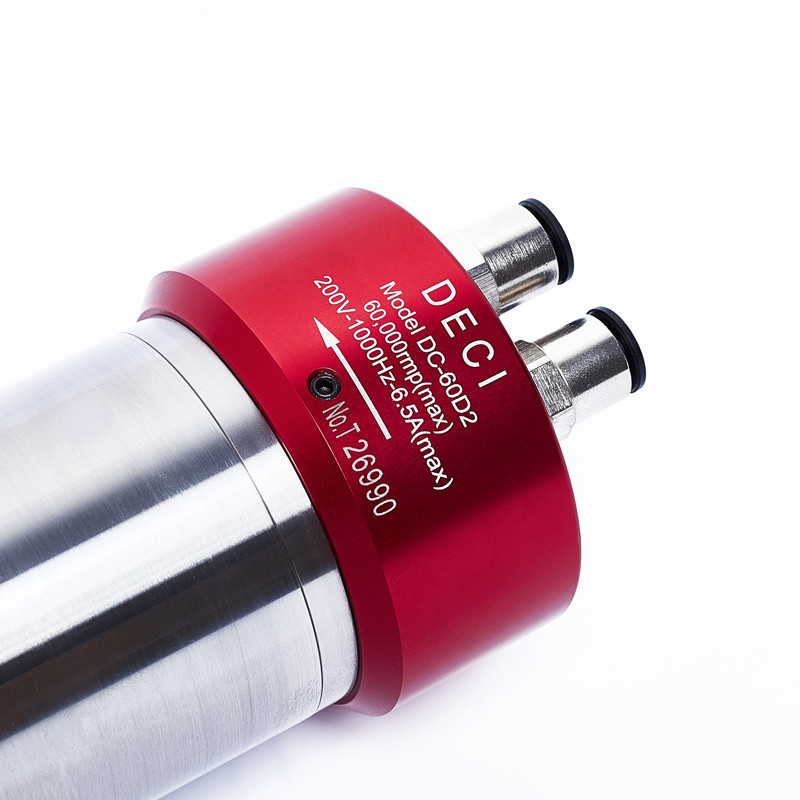

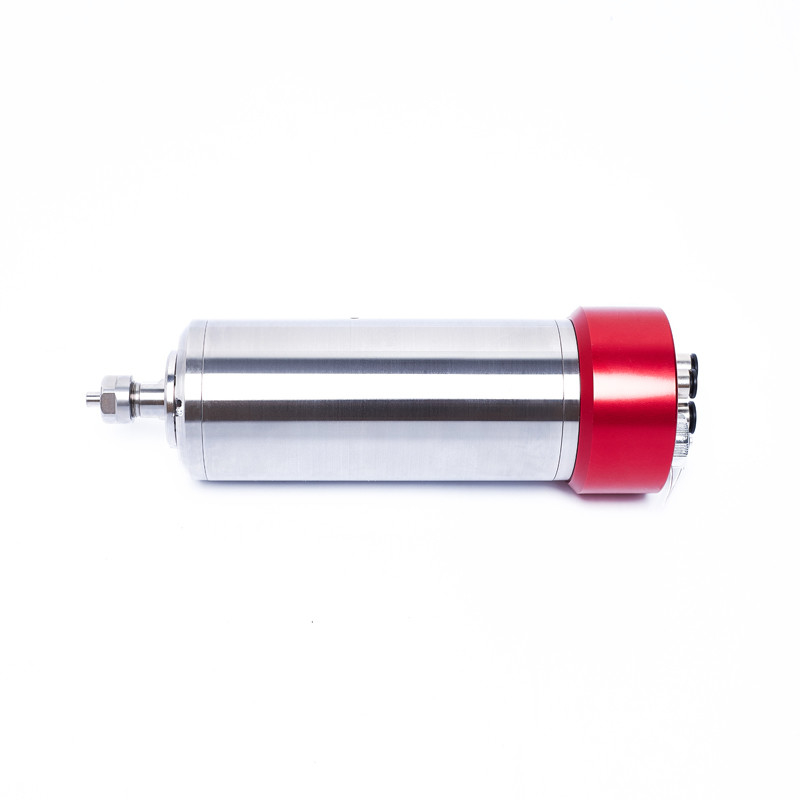

2.2KW 1..8KW 1.5KW 1.2KW CNC MTC Spindle Motors 60000 RPM,220 V, ER11 collet chuck High precision gloss CNC electro spindle

2.2KW 1..8KW 1.5KW 1.2KW CNC MTC Spindle Motors 60000 RPM,220 V, ER11 collet chuck High precision gloss CNC electro spindle

  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining
  • Weight (KG)
    3
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2023
  • Application
    Grinding
  • Maximum Torque
    0.056
  • Drive
    Motor
  • Operating Speed
    60000RPM
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor
  • Power
    2.2KW
  • Voltage
    220V(3~)
  • Frequency
    1000HZ
  • Current
    7.2A
  • Cooling Method
    Water Cooloing
  • Tool Collet
    ER11
  • Tool Change Method
    Manual
  • Vibration Value
    Less Than 0.8mm/s
  • Shaft Cone End Runout
    Less Than 0.001mm
  • Bearing Lubrication
    Grease
  • Place of Origin
    guangdong,china
  • Brand Name
    DECI
  • Price
    $840.00/sets 1-9 sets

2.2KW 1..8KW 1.5KW 1.2KW CNC MTC Spindle Motors 60000 RPM,220 V, ER11 collet chuck High precision gloss CNC electro spindle

2.2KW 1..8KW 1.5KW 1.2KW CNC MTC Spindle Motors 60000 RPM,220 V, ER11 collet chuck High precision gloss CNC electro spindle

M.T.C. electrosplindles (Manual Tool Change) derived from long experience with the prestigious range A.T.C. of which maintain the goal of the high precision and performance. In the range M.T.C. accuracy and performance are combined with high compactness that makes those electrospindles particularly suitable for applications with multi-spindle machining heads. They are available at 18.000 rpm with high precision steel ball bearings and 24.000 rpm with high precision ceramic ball bearings.



Deci is the Premier Manufacturer of ATC/MTC spindle motors, located in Guangzhou city China.

We are aimed to provide Europe Quality high precision high speed spindle motorswith China price .

DECI offers a full line of spindle motor from 0.24kw to 12kw power which applied to :

· Metal Milling Spindle motor

· Wood CNC Router Spindle Motor

· PCB Drilling Spindle Motor

· Dental Milling Spindle Motor

Our main purpose at DECI is to produce fine-turned ,high performance products through research and design

Through careful research, design, assembly,and quality control , the mission at DECI is to be a global leader in the fabrication of high speed spindles.

5 Why choose us

2.2KW 1..8KW 1.5KW 1.2KW CNC MTC Spindle Motors 60000 RPM,220 V, ER11 collet chuck High precision gloss CNC electro spindle2.2KW 1..8KW 1.5KW 1.2KW CNC MTC Spindle Motors 60000 RPM,220 V, ER11 collet chuck High precision gloss CNC electro spindle

3 Application

2.2KW 1..8KW 1.5KW 1.2KW CNC MTC Spindle Motors 60000 RPM,220 V, ER11 collet chuck High precision gloss CNC electro spindle

2 Our Model

2.2KW 1..8KW 1.5KW 1.2KW CNC MTC Spindle Motors 60000 RPM,220 V, ER11 collet chuck High precision gloss CNC electro spindle

6 Contact Us

2.2KW 1..8KW 1.5KW 1.2KW CNC MTC Spindle Motors 60000 RPM,220 V, ER11 collet chuck High precision gloss CNC electro spindle

2.2KW 1..8KW 1.5KW 1.2KW CNC MTC Spindle Motors 60000 RPM,220 V, ER11 collet chuck High precision gloss CNC electro spindle

FAQ

Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.



Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?

A: We have all the packages. We can get the engineer to program you.


Q:
What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7

      work days.


Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q:
Which payment method and Express can you accept?

A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.

     2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.


Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
     2. We respect every customer as our friend and we sincerely do business and make friends

          with them, no matter where they come from.
