DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision

DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision

Products - Machine Center
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    3.9
  • Showroom Location
    None
  • Video Outgoing-inspection
    Not Available
  • Machinery Test Report
    Not Available
  • Marketing Type
    New Product 2020
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    0.28N.M
  • Drive
    Motor
  • Operating Speed
    20000rpm
  • Warranty
    6 Months
  • Core Components
    Bearing, Motor
  • Product Name
    Cnc Spindle
  • Power
    0.7kw
  • Voltage
    200V
  • Frequency
    1000HZ
  • Current
    2A
  • Weight
    3.9kg
  • Cooling Method
    Water Cooling, Oil Cooling
  • Tooling Exchange Method
    ATC
  • Diameter
    62mm
  • Lubrication
    Grease
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $900.00/sets 1-9 sets
  • Supply Ability
    500 Set/Sets per Month

DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision

  • DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision
  • DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision
  • DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision
  • DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision
  • DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision
  • DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision
Get Price Contact Now
Product Description

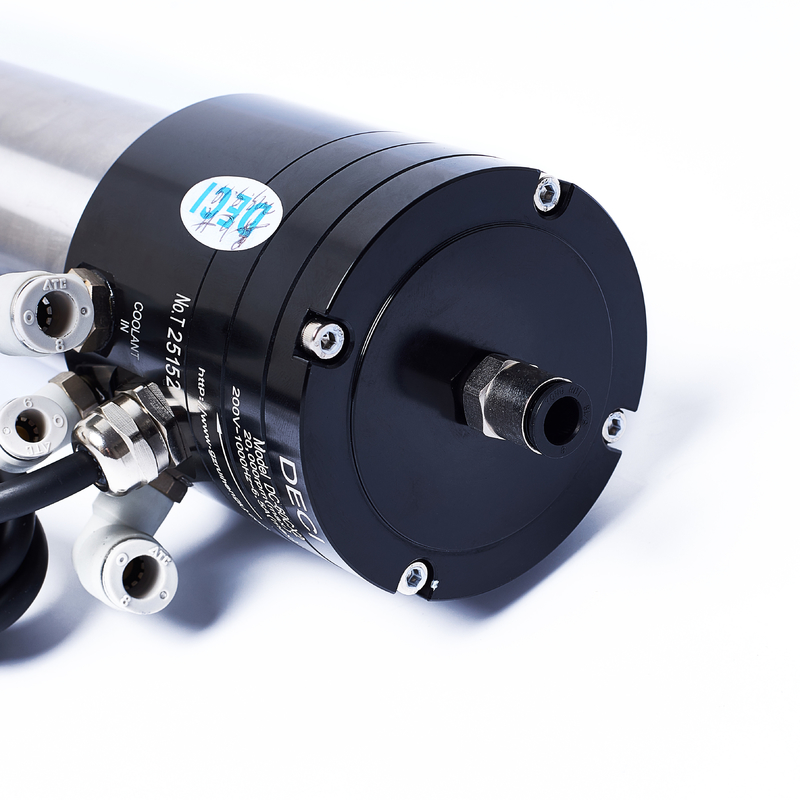

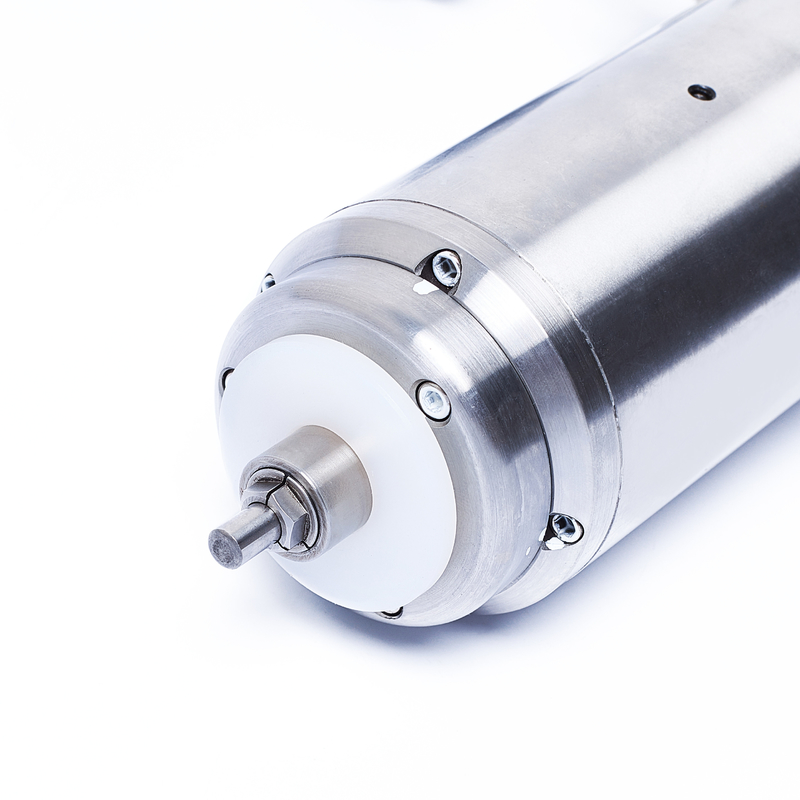

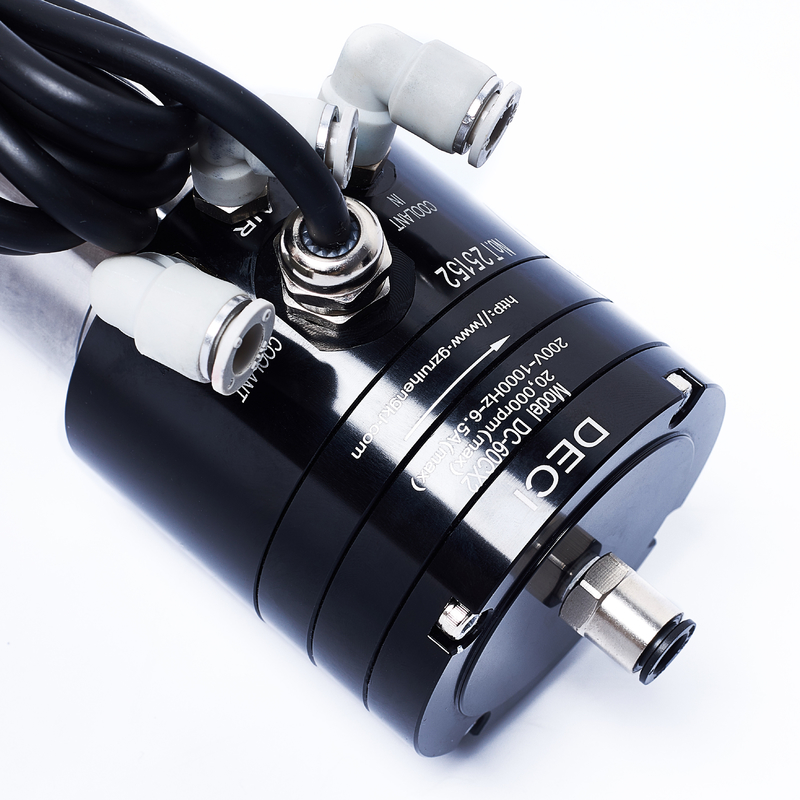

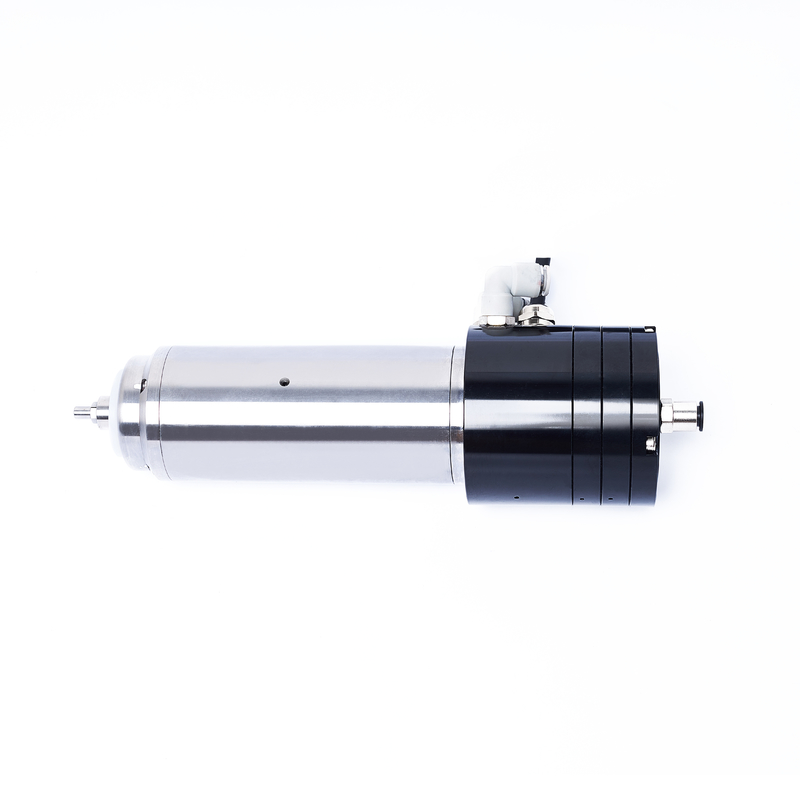

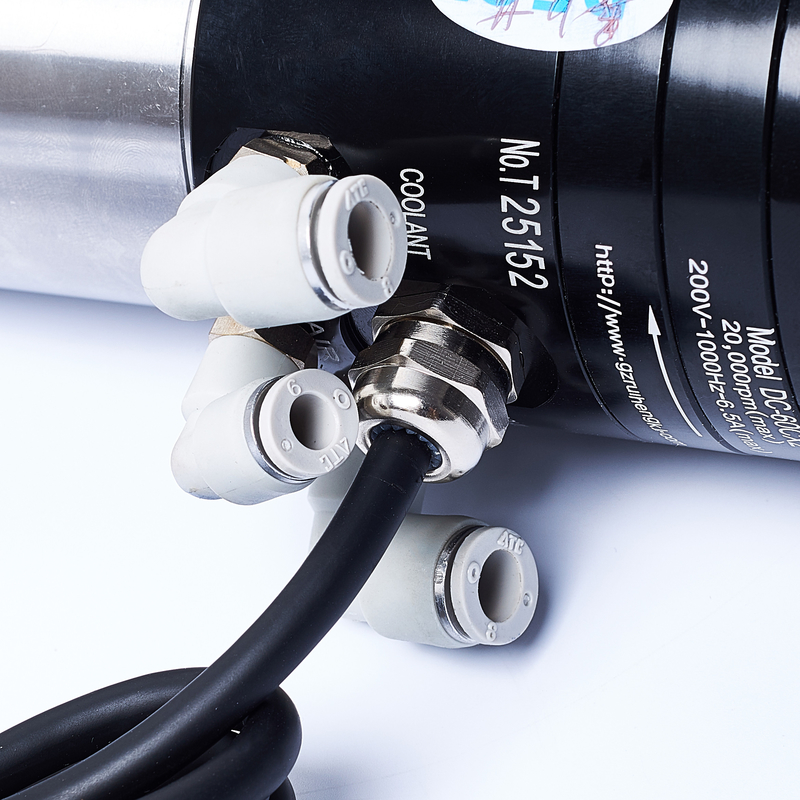

DECI ATC 0.7KW 20000Rmp machine tool Lathe CNC spindle motor

This product is a high-speed motor spindle with max speed of 20000rpm and rated power of 0.7KW. It is widely used in the processing of composite materials such as denture machine, zirconia, ceramics and titanium alloy with high precision drilling, milling and grinding.



DECI spindle Motor Feature

1) Imported bearings with good quality, long working life.

2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.

3) There are water cooling spindle  , air cooling spindle and self cooling spindle for your choose.

4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.







Specificiations

 DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precisionDECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precisionDECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precisionDECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precisionDECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precisionDECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision



DECI DC-60CX2
Parameters
Motor Power: 0.7KW Rated voltage: 200V/AC
Max rotate speed : 20000Rpm/min Max currency: 2A
Max Frequency: 1000Hz Chuck Torque: ≥254(Φ6Shank)
Specification
Shaft-end Cone Run-out: 1.27(max) Upper limit frequency: 333Hz
Tooling Exchange Method: ATC Cylinder working Pressure: 5.6-6.0Kgf/cm²
Mounting diameter: Φ60.902-61.91 Cooling system coolant flow: water≥1.6L/min,
oil≥3.0L/min
Shaft end static deflection: ≤2.0um Coolant air pressure: water≥2.5Kgf/cm²,
oil≥4.0Kgf/cm²
Shaft end dynasmic deflection: ≤8um Motor winding insulation resistance: ≥500(H Level)MΩ
Noise value: ≤72dBA Motor winding withstand voltage test: 1500V/1minute withstand voltage test
Balance Level : ≤0.8mm/s Spindle blowing pressure: 2.5-3.0Kgf/cm²
Weight: 3.9kg Spindle blowing dust flow: ≥60L/min
DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision
Applicable industry

DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision

Packaging & Shipping

 DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision

Why choose us

DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision



Company Profile

DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision

Certifications

DECI ATC 2.2KW 60000rpm automatic tool changing machine center milliing machine tool lathe CNC spindle motor high precision

FAQ

Q1:Are you a trading company or a manufacturer ?
A1: We are the manufacturer of DECI electric spindles.



Q2:Do you have the products in stock?

A2:Our products are manufactured according to your order required except normal products.


Q3:Can I get some samples first?
A3: We can supply the sample if in stock, but the customers have to pay the sample cost and the courier cost..


Q4:How does your factory do regarding quality control?
A4:Quality is priority. Quality first. We We have been paying close attention to the quality control in the production process to ensure each product passes various tests before shipping.

Q5.How about the warranty of the products?

A5: We offer 12 months of technical service and after-sales service. If any problem about the machine after receivd, feel free to contact us.


Q6:How do you make our business long-term and good relationship?
A6:1.DECI keep good quality and competitive price to ensure our customers benefit ;
      2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
