DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle

DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle

Products - BT30 BT40
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    52
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    22.4N.M
  • Drive
    Motor
  • Operating Speed
    20000rpm
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor
  • Product Name
    BT40
  • Power
    7.5/15kw
  • Voltage
    380/220(3~)
  • Frequency
    667HZ
  • Current
    30/63A
  • Weight
    51kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    ATC
  • Installation Method
    Clamp/Flange
  • Diameter
    150mm
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $3,995.10/sets 1-9 sets
  • Supply Ability
    500 Set/Sets per Month

DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle

  • DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle
  • DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle
  • DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle
  • DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle
  • DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle
  • DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle
Get Price Contact Now
Product Description
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle

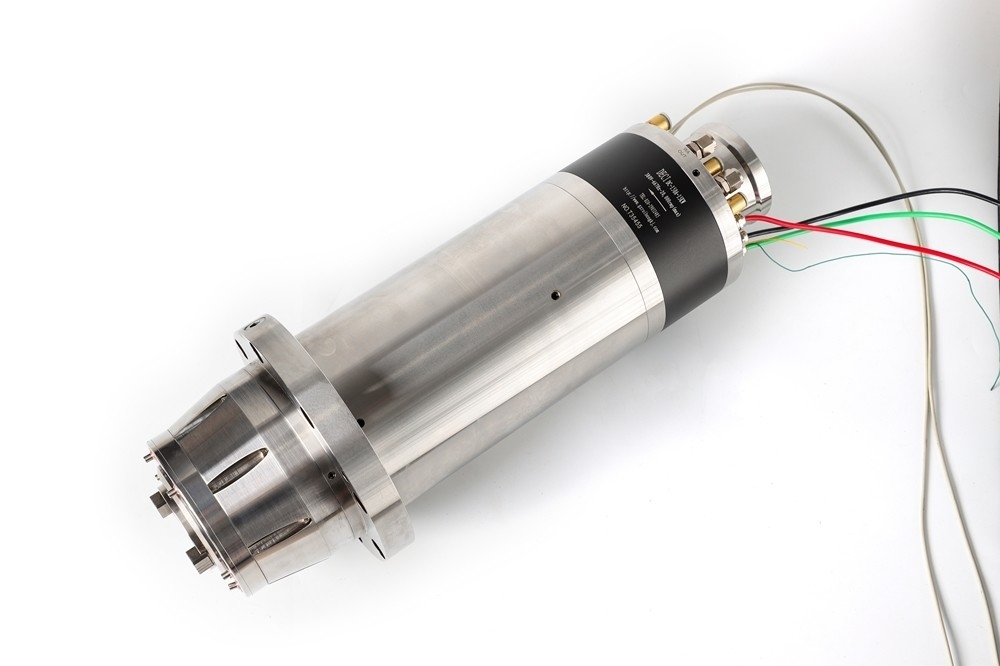

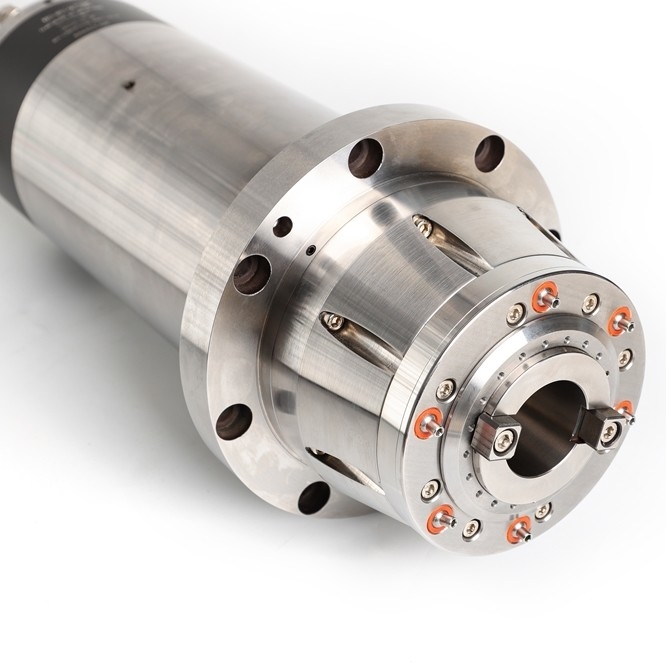

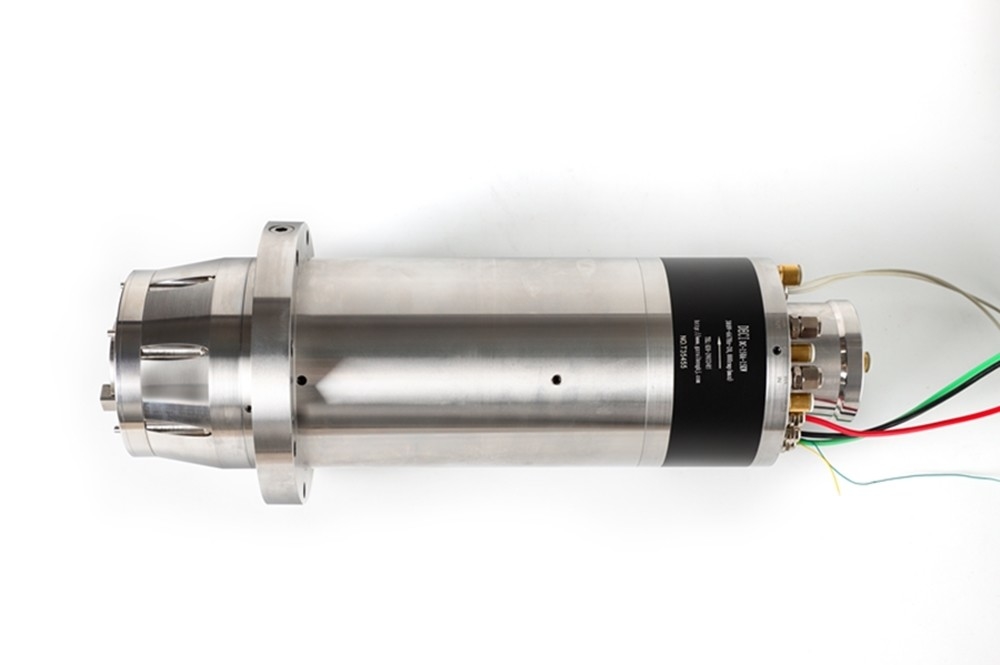

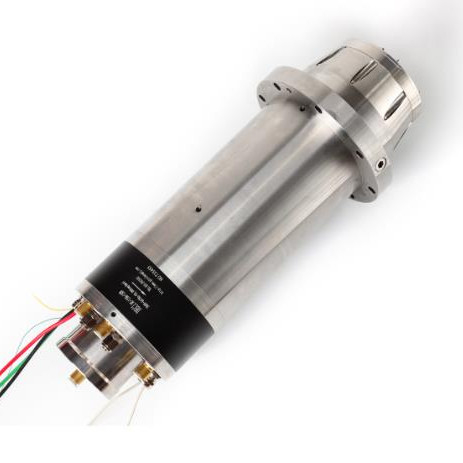

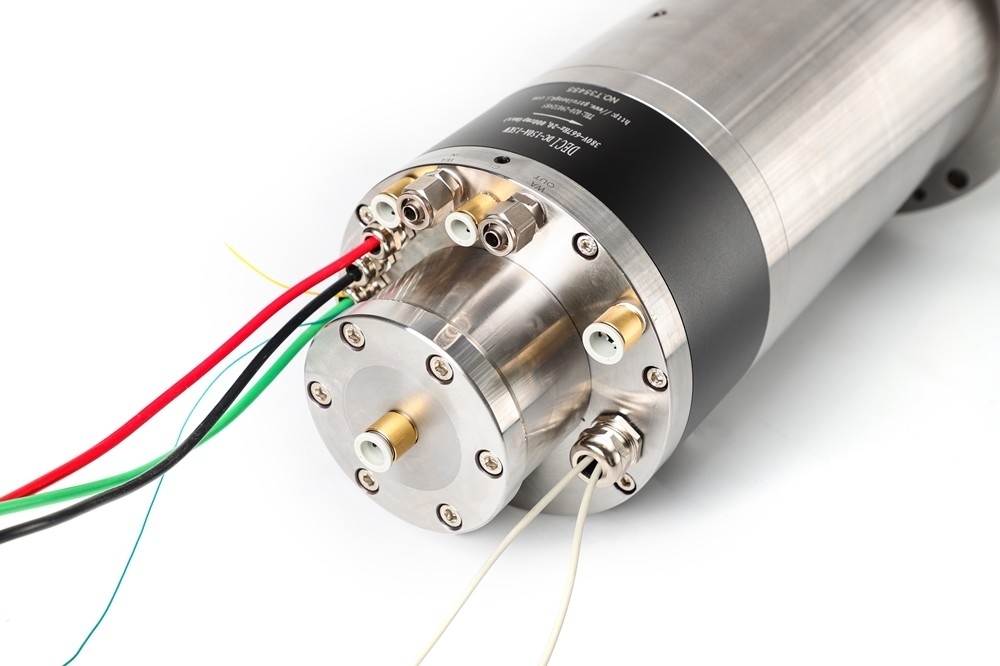

This product is a metal cutting high speed motor spindle with a maximum speed of 20000 rpm and a rated power of 7.5/15 KW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.

DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.

DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 0
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 1
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 2
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 3
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 4
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 5
DECI   DC-150A-BT40
Parameters
Motor Power:
7.5/15KW
Rated voltage:
380/220V(3~)
Max rotate speed :
20000Rpm/min
Max currency:
42/57A
Max Frequency:
667Hz
Torque:
22.4/29.4N.M
Specification
Shaft-end Cone Run-out:
≤0.001mm
Tooling Releasing Air Pressure:
50-80 Kgf/cm²
Tooling Exchange Method:
ATC
Air curtain pressure at front end:
2.5~3.0 Kgf/cm²
Tooling Pulling Force:
≥6000
Tooling Back Air Pressure:
5.6-6.0 Kgf/cm²
Tooling Connection:
BT40 tool holder
Cooling:
water cooling
Encoder:
Square / sine wave (optional)
Coolant Pressure:
≥2.5 Kgf/cm²
Approach Switch:
PNP ON
Bearing Lubrication Method:
Grease
Balance Level :
G1
Tooling Instalation Method:
Mechanical clip
Vibration Value:
≤0.8
Weight:
49.5 kg
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 6
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 7
Packing&Shipping
Packed in export standard carton or plywood case, with PP bag, thick foam.
DECI Spindle / cnc in Machining.
diy atc spindle motor
atc spindle belt drivenatc spindle belt driven
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 8
Related Products
Applicable industry
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 9
Why Choose Us
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 10
Company Profile
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 11
DECI Brand
Guangzhou Ruiheng Technology Co., Ltd is located in the Eastern Development Zone of Guangzhou. (Foshan Nanhai Xingtuo Precision Machinery Co., Ltd. is our subsidiary.) The company was established in 2009. We are a national high-tech enterprise integrating R&D, production, sales and maintenance of high-speed electric spindle. With the concerted efforts of all employees, a number of self-developed patented products, and the rapid development of the industry, the product quality and accuracy requirements are getting higher and higher. For this reason, the company has introduced advanced high-precision production of Swiss, German, British, Korean and other technologies for the electric spindle. Equipment and testing and calibration equipment, with the goal of "doing fine, coming stronger and bigger", more than 60% of our products are exported to the United States, Europe, India, Brazil, Dubai and other countries to help customers continuously update with quality service. Work hand in hand with customers, develop together, use morality as a product, and create a first-class product with magnetic "DECI" to help China create!
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 12
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 13
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 14
Certifications
DECI BT40 engraving and milling machine accessories denture soft material processing round motor spindle 15
FAQ
Q1:Are you a trading company or a manufacturer?
A1: We are the manufacturer of DECI electric spindles.

Q2:Do you have the products in stock?
A2:Our products are manufactured according to your order required except normal products.

Q3:Can I get some samples first?
A3: We can supply the sample if in stock, but the customers have to pay the sample cost and the courier cost..

Q4:How does your factory do regarding quality control?
A4:Quality is priority. Quality first. We We have been paying close attention to the quality control in the production process to ensure each product passes various tests before shipping.

Q5.How about the warranty of the products?
A5: We offer 12 months of technical service and after-sales service. If any problem about the machine after receivd, feel free to contact us.

Q6:How do you make our business long-term and good relationship?
A6:1.DECI keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
