DECI high precision ISO10 atc water cooled 60000rpm 200V 1.8KW machine tool milling spindle motor

DECI high precision ISO10 atc water cooled 60000rpm 200V 1.8KW machine tool milling spindle motor

Products - ISO10
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    3.97
  • Showroom Location
    None
  • Video Outgoing-inspection
    Not Available
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    0.28N.M
  • Drive
    Motor
  • Operating Speed
    60000rpm
  • Warranty
    6 Months
  • Core Components
    Bearing, Motor
  • Product Name
    ISO10 Spindle
  • Power
    1.8/1.5/1.2KW
  • Voltage
    200(3~)V
  • Frequency
    1000HZ
  • Current
    6.5/5.0/4.3A
  • Weight
    3.97kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    ATC
  • Diameter
    62mm
  • After Warranty Service
    Spare Parts
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $1,177.70/pieces 1-9 pieces
  • Supply Ability
    500 Set/Sets per Month

DECI high precision ISO10 atc water cooled 60000rpm 200V 1.8KW machine tool milling spindle motor

  • DECI high precision ISO10 atc water cooled 60000rpm 200V 1.8KW machine tool milling spindle motor
  • DECI high precision ISO10 atc water cooled 60000rpm 200V 1.8KW machine tool milling spindle motor
  • DECI high precision ISO10 atc water cooled 60000rpm 200V 1.8KW machine tool milling spindle motor
  • DECI high precision ISO10 atc water cooled 60000rpm 200V 1.8KW machine tool milling spindle motor
  • DECI high precision ISO10 atc water cooled 60000rpm 200V 1.8KW machine tool milling spindle motor
  • DECI high precision ISO10 atc water cooled 60000rpm 200V 1.8KW machine tool milling spindle motor
Get Price Contact Now
Product Description

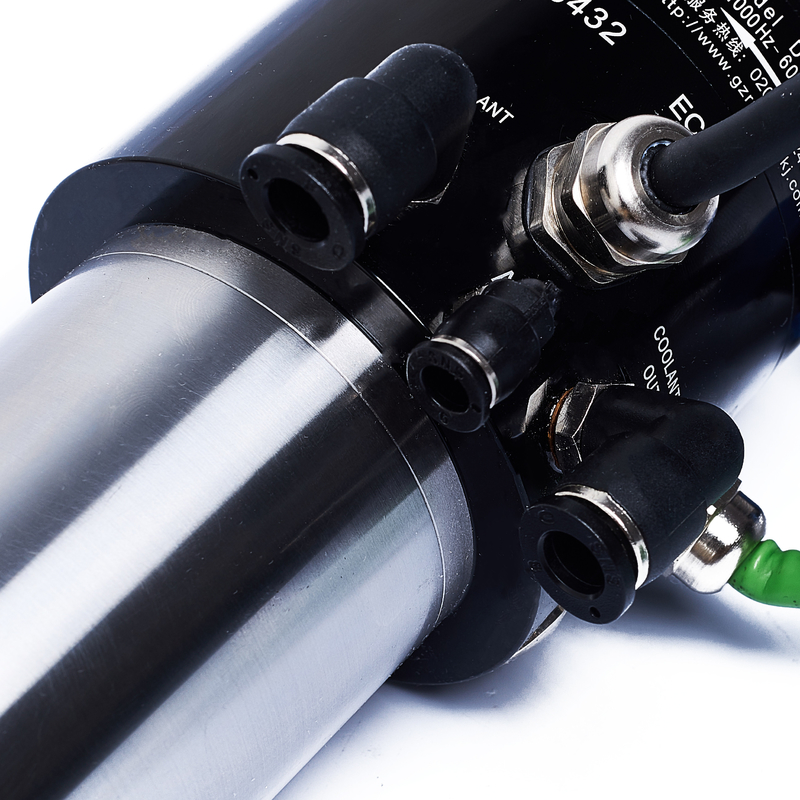

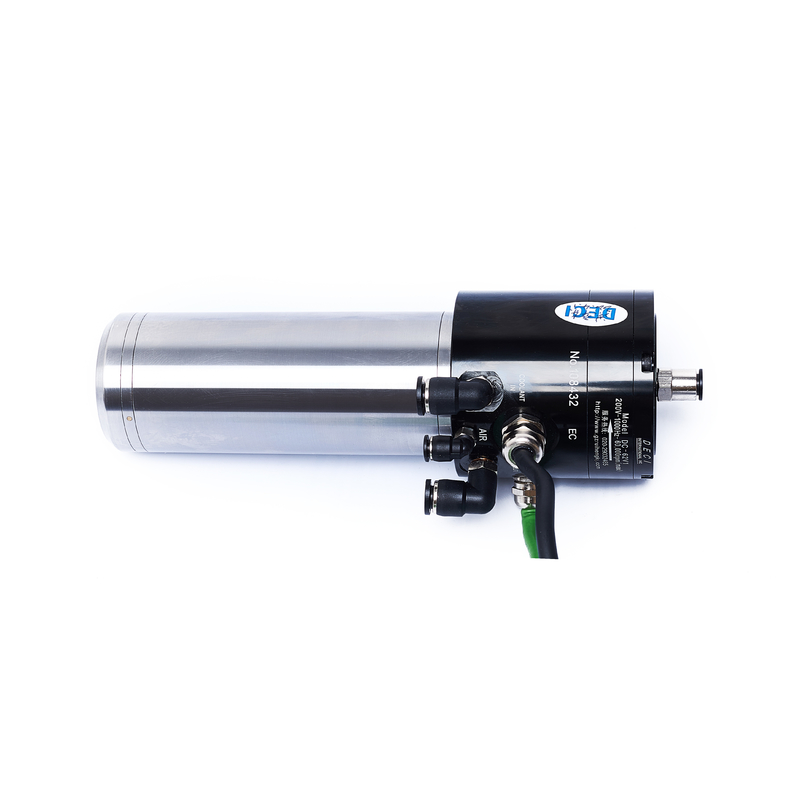

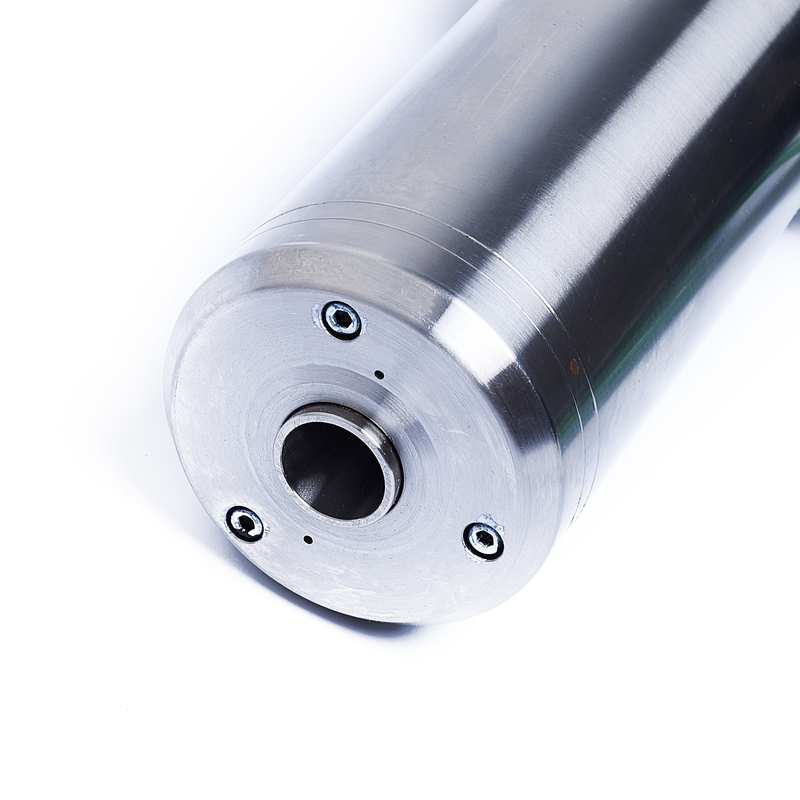

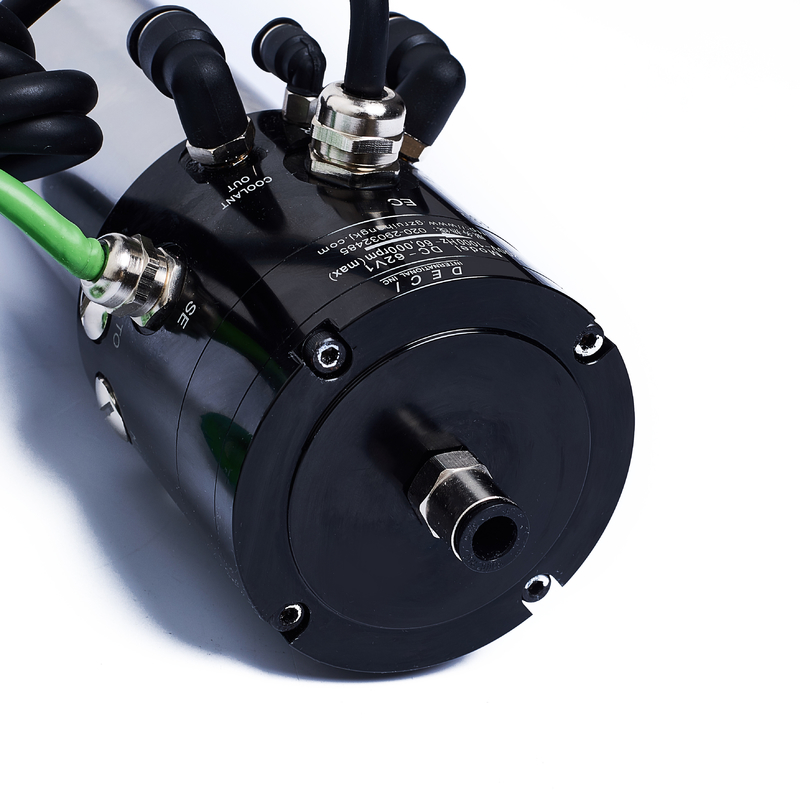

High Precision atc water cooled 60000Rmp 200V 1.8KW  1500W milling motor spindle
This product is a high speed electric spindle with a maximum speed of 60000 rpm and a rated power of 1.8/1.5/1.2 KW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.

DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.

DECI high precision ISO10 atc water cooled 60000rpm 200V 1.8KW machine tool milling spindle motor 0
DECI high precision ISO10 atc water cooled 60000rpm 200V 1.8KW machine tool milling spindle motor 1
DECI high precision ISO10 atc water cooled 60000rpm 200V 1.8KW machine tool milling spindle motor 2
DECI  DC-62V1
Parameters
Motor Power:
1.8/1.5/1.2KW
Rated voltage:
200V(3~)



Max rotate speed :
60000Rpm/min
Max currency:
6.5/5.0/4.3A



Max Frequency:
1000Hz
Torque:
0.28/0.24/0.19N.M



Specification
Shaft-end Cone Run-out:
≤0.001mm
Tooling Releasing Air Pressure:
5.6-6.0 Kgf/cm²



Tooling Exchange Method:
ATC
Air curtain pressure at front end:
2.5~3.0 Kgf/cm²



Tooling Pulling Force:
≥800
Tooling Back Air Pressure:
5.6-6.0 Kgf/cm²



Tooling Connection:
T11-ER11
Cooling:
water cooling



Encoder:
─
Coolant Pressure:
≥2.5 Kgf/cm²



Approach Switch:
PNP ON
Bearing Lubrication Method:
Grease



Balance Level :
G1
Tooling Instalation Method:
Mechanical clip



Vibration Value:
≤0.8
Weight:
3.9kg



DECI high precision ISO10 atc water cooled 60000rpm 200V 1.8KW machine tool milling spindle motor 3
DECI high precision ISO10 atc water cooled 60000rpm 200V 1.8KW machine tool milling spindle motor 4
Packing&Shipping
Packed in export standard carton or plywood case with PP bag, thick foam.
