12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder

12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder

Products - ISO30
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    24.3
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    9.55N.M
  • Drive
    Motor
  • Operating Speed
    24000rpm
  • Warranty
    6 Months
  • Core Components
    Bearing, Motor
  • Product Name
    Woodworking Spindle
  • Diameter
    145mm
  • Power
    12.0/9.0/3.7KW
  • Voltage
    380/220(3~)
  • Frequency
    800HZ
  • Current
    23/17/7A
  • Key Word
    Cnc In Wood Router
  • Cooling Method
    Water Cooling/ Air Cooling
  • Tooling Exchange Method
    ATC
  • Installation Method
    FLANGE
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $1,568.80/sets 1-9 sets
  • Supply Ability
    500 Set/Sets per Month

12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder

  • 12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder
  • 12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder
  • 12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder
  • 12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder
  • 12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder
  • 12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder
Get Price Contact Now
Product Description
DECI high torque 12KW 24000rmp 380V 220V ISO30 Air cooling atc for cnc woodworking spindle motor with encoder
DC-WP145A is a 24000rmp spindle motor with water cooling air cooling optional. DC-120MA is a 24000rmp spindle motor with water cooling. It is suitable for drilling, milling and tapping processing of aluminum profiles, wood, acrylic, fiberboard, etc.Suitable for drilling, milling and tapping processing of aluminum profiles, wood, acrylic, fiberboard, etc.

DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.

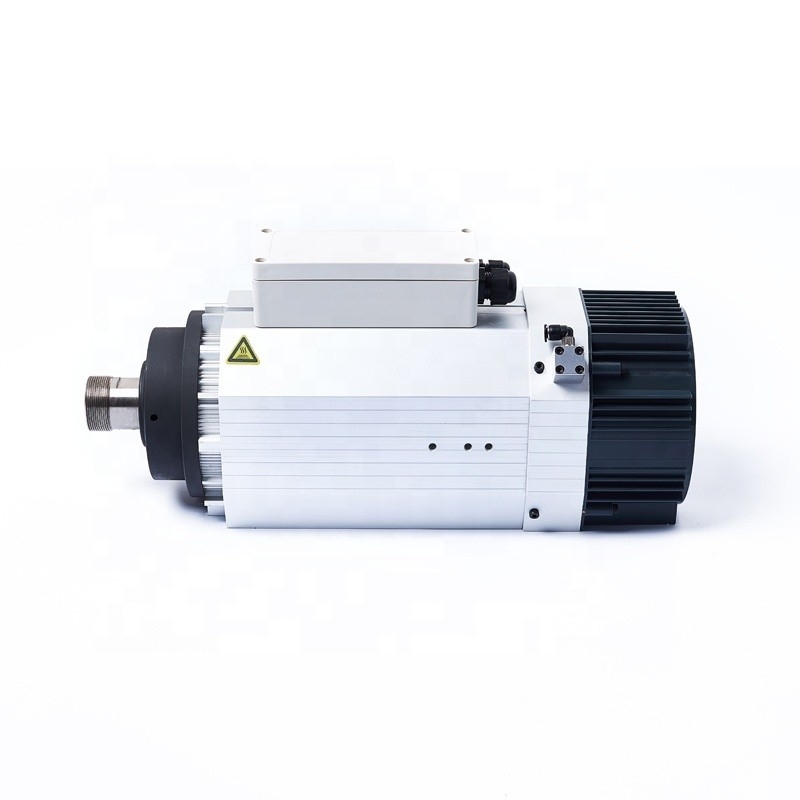

12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder 0

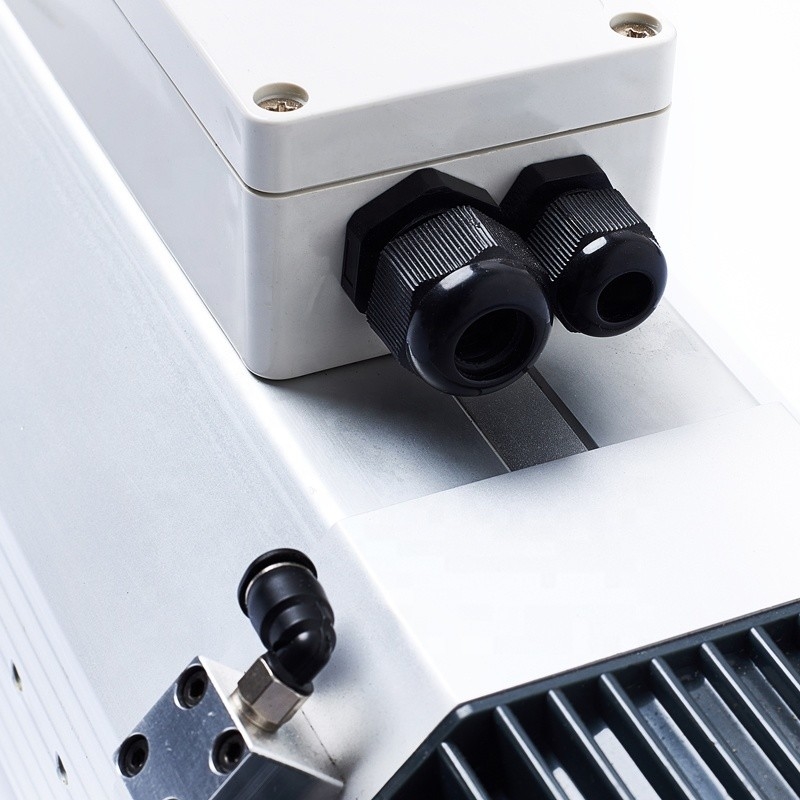

12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder 1

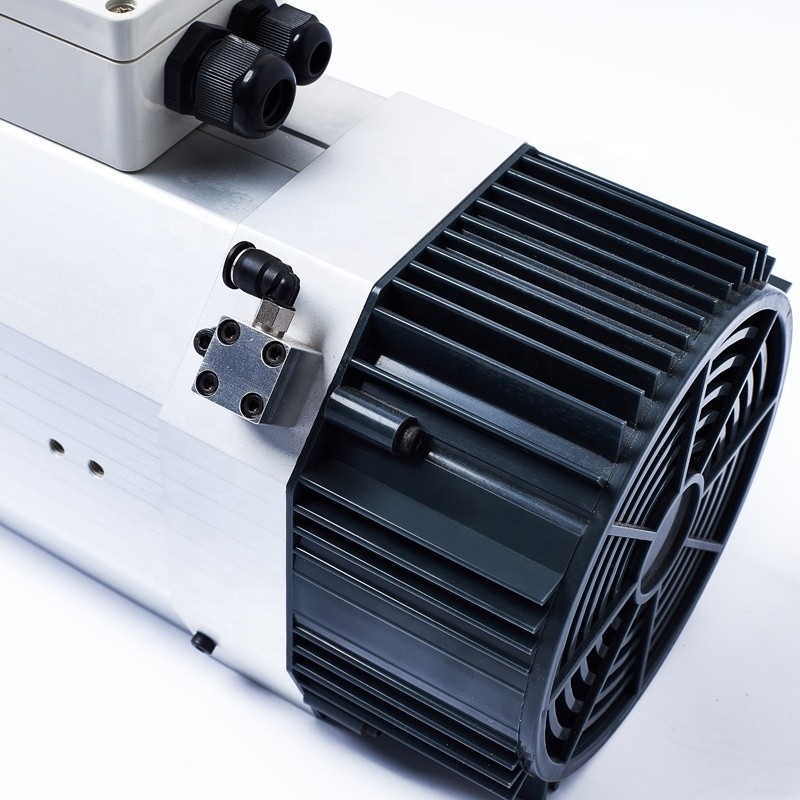

12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder 2
DECI   DC-WP145A
Parameters
Motor Power:
12.0/9.0/3.7KW
Rated voltage:
380/220V(3~)



Max rotate speed :
24000Rpm/min
Max currency:
23/17/7A



Max Frequency:
800Hz
Torque:
9.55/7.16/7.1N.M



Specification
Shaft-end Cone Run-out:
≤0.001mm
Tooling Releasing Air Pressure:
5.6-6.0 Kgf/cm²



Tooling Exchange Method:
ATC
Air curtain pressure at front end:
2.5~3.0 Kgf/cm²



Tooling Pulling Force:
≥2900
Tooling Back Air Pressure:
─



Tooling Connection:
ISO30 Shank
Cooling:
Air cooling



Encoder:
Square wave TTL (optional)
Coolant Pressure:
2.5 Kgf/cm²



Approach Switch:
PNP On
Bearing Lubrication Method:
Grease



Balance Level :
G1
Tooling Instalation Method:
T slot



Vibration Value:
≤0.8
Weight:
24.3kg

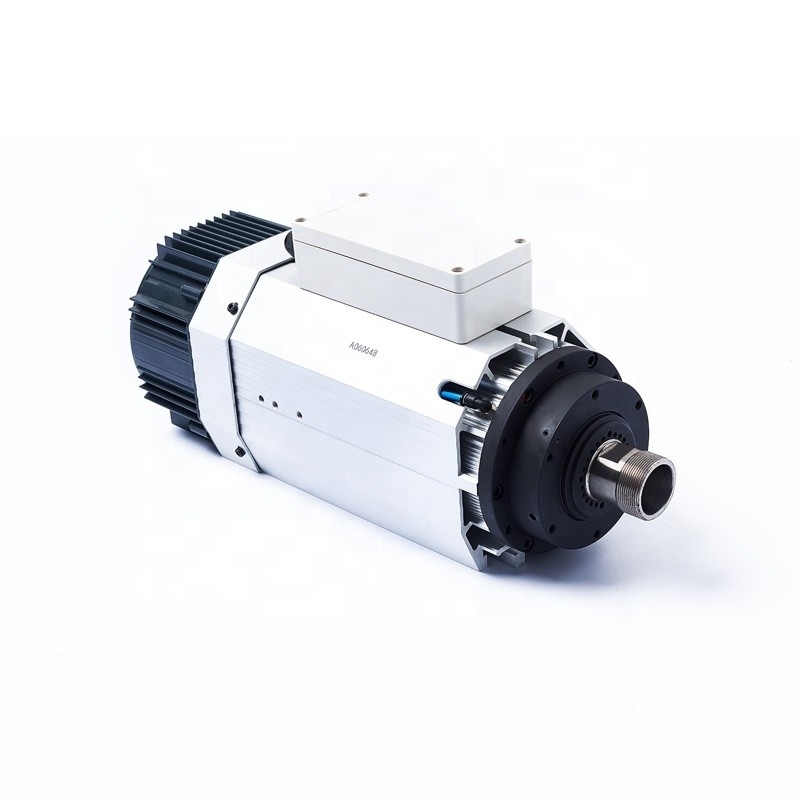

12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder 3

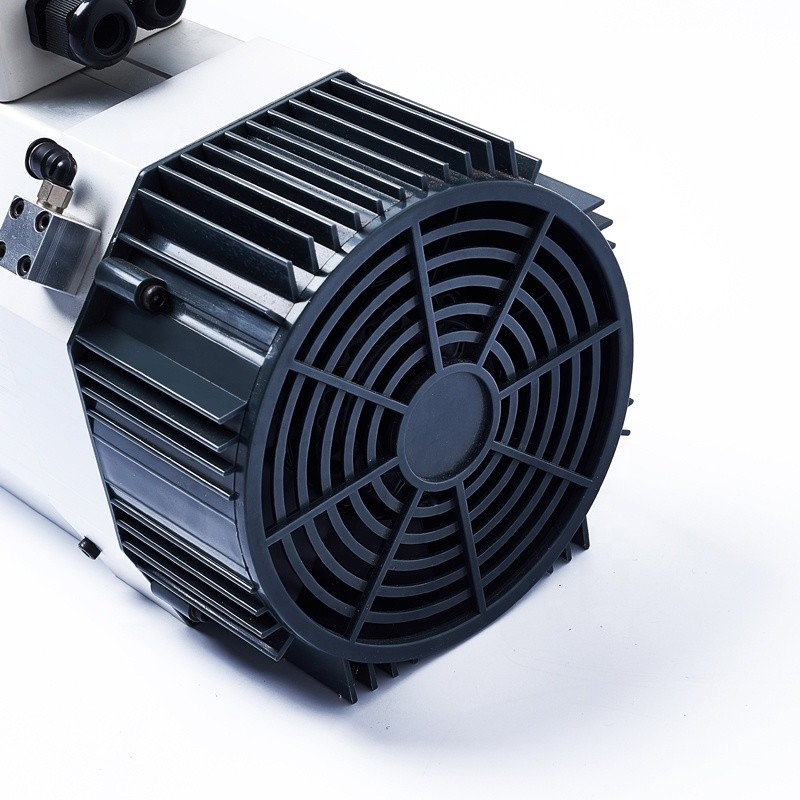

12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder 4
Packing&Shipping
Packed in export standard carton or plywood case with PP bag, thick foam.
DECI Spindle / cnc in Machining.
atc bt30 spindle
atc cnc wood carving machine

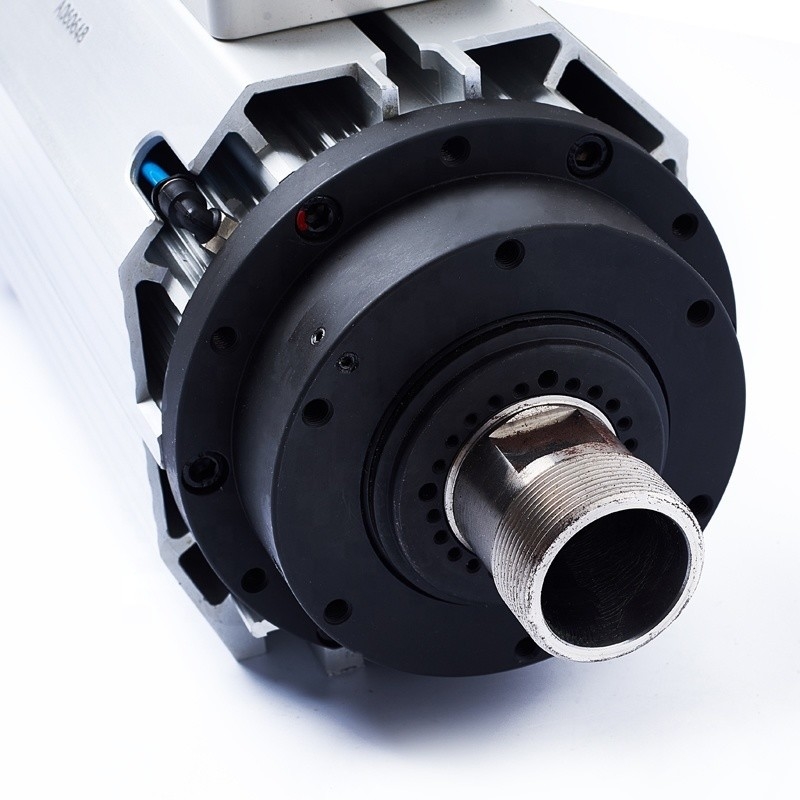

12KW 24000rpm 380V 220V ISO30 Air Cooling ATC CNC Woodworking Spindle Motor with Encoder 5
