2000rpm high speed water milling engraving spindle motor, is a automatic tools change high precision high speed spindle motor . Tool interface is HSK63A tools hold. It can apply for PCB drilling ,dental engraving.Some clients need less power also used to alumium profile polishing and cutting .
Personalized customization: The company has strong research and development strength, flexible design, and can customize high-speed milling electric spindles with different functions, speed and precision according to customer needs.
spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
|
Number |
Technical parameter |
Standard |
| 01 | Speed range (rpm) | 10000~40000 |
| 02 | Maximum current (A) | 5.0 |
| 03 | Frequency range (Hz) | 167~666 |
| 04 | Voltage range (V) | 0~66.6 |
| 05 | Power (KW) | 0.52(max) |
| 06 | Static deflection of shaft end (μm) | 2.0(max) |
| 07 | Dynamic deflection of shaft end (μm) | 5.0(at 12mm) |
| 08 | Vibration value(mm/s) | ≤0.8 |
| 09 | Assembly surface diameter(mm) | Φ38.484~38.5 |
| 10 | Air flow of cooling system(L/min) | ≥40 |
|
11 | Air pressure of cooling system(kg f/cm2 ) | 2.5~3.0 |
| 12 | Motor winding insulation resistance(MΩ) | ≥500(H level) |
| 13 | Motor winding withstand voltage test(V/ M) | 1500V/1 minute withstand voltage test |
| 14 | Noise value(dBA) | ≤72 |
| 15 | Spindle tool unloading air pressure(kg f/cm2) | 5.0~6.0 |
| 16 | Tool change form | Automatic |
| 17 | Chuck torque(N ·cm) | ≥165(Φ4 tool holder) |
Q: Are you trading company or manufacturer ?
A:We are the manufacturer of DECI electric spindles.

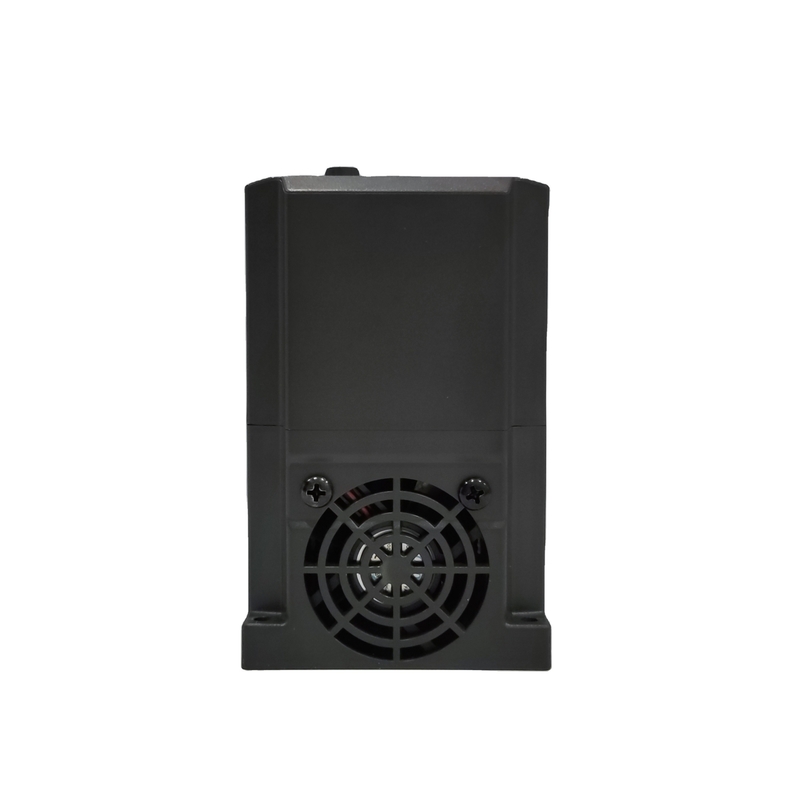

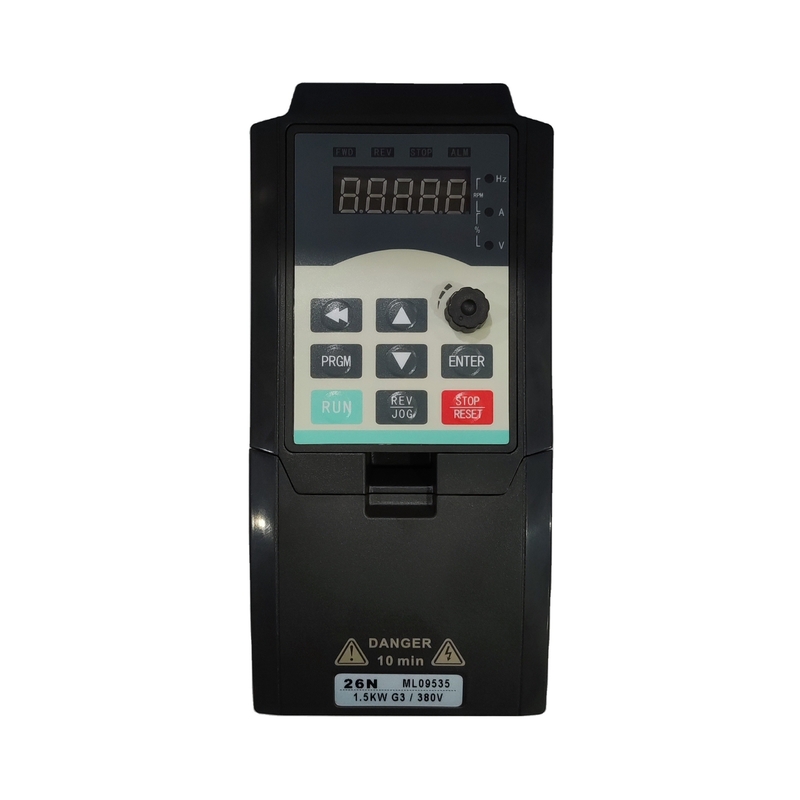

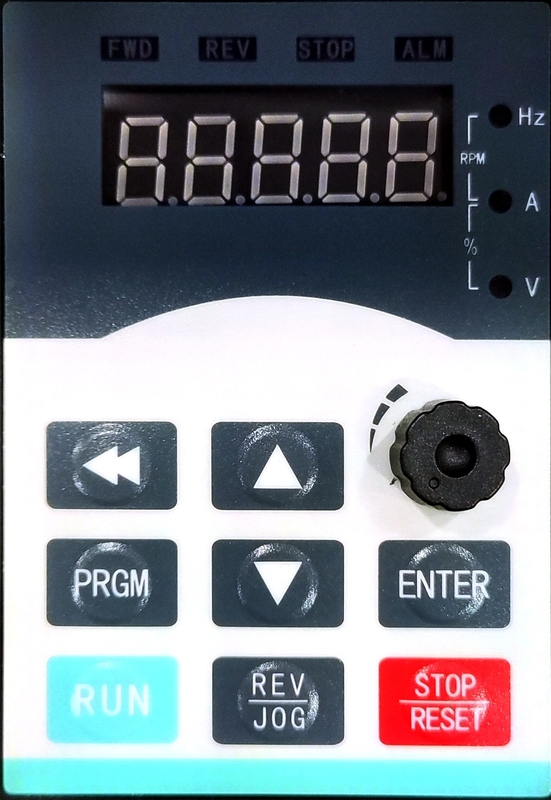

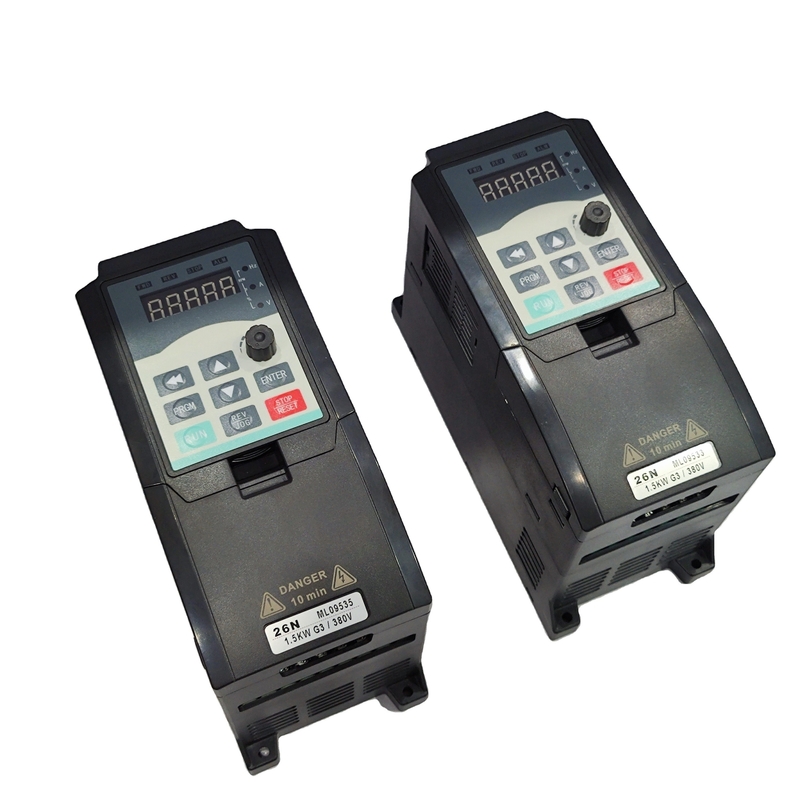

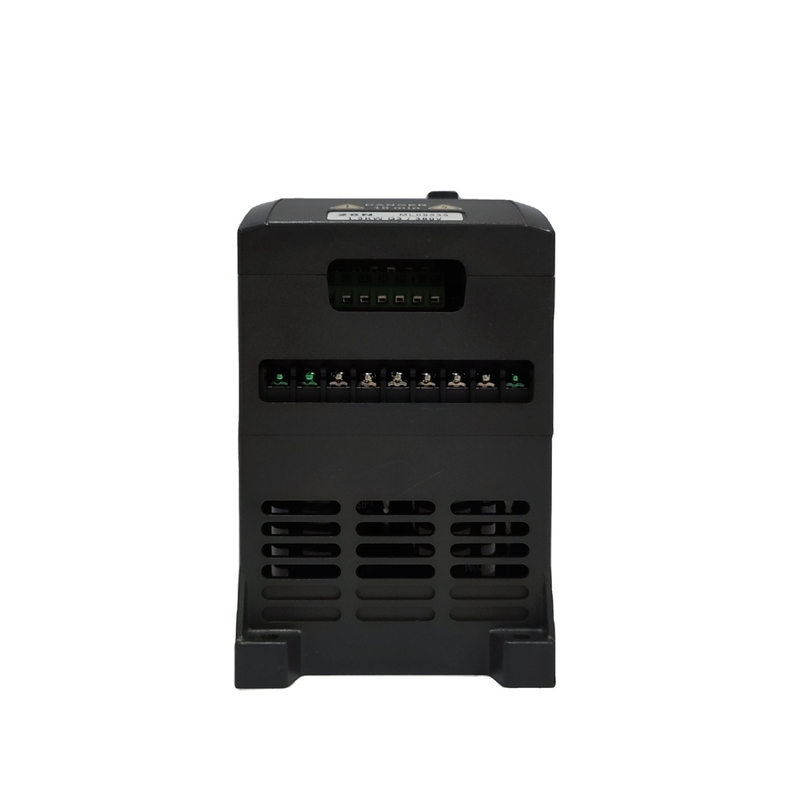

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A:we have all the packages. We can get the engineer to program you
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.
Q: Which payment method and Express can you accept?
1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.
Q: How do you make our business long-term and good relationship?
A: 1. DECI keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Our products are sold all over the world, you can rest assured.
